USA Security Systems

M13VG2812IR

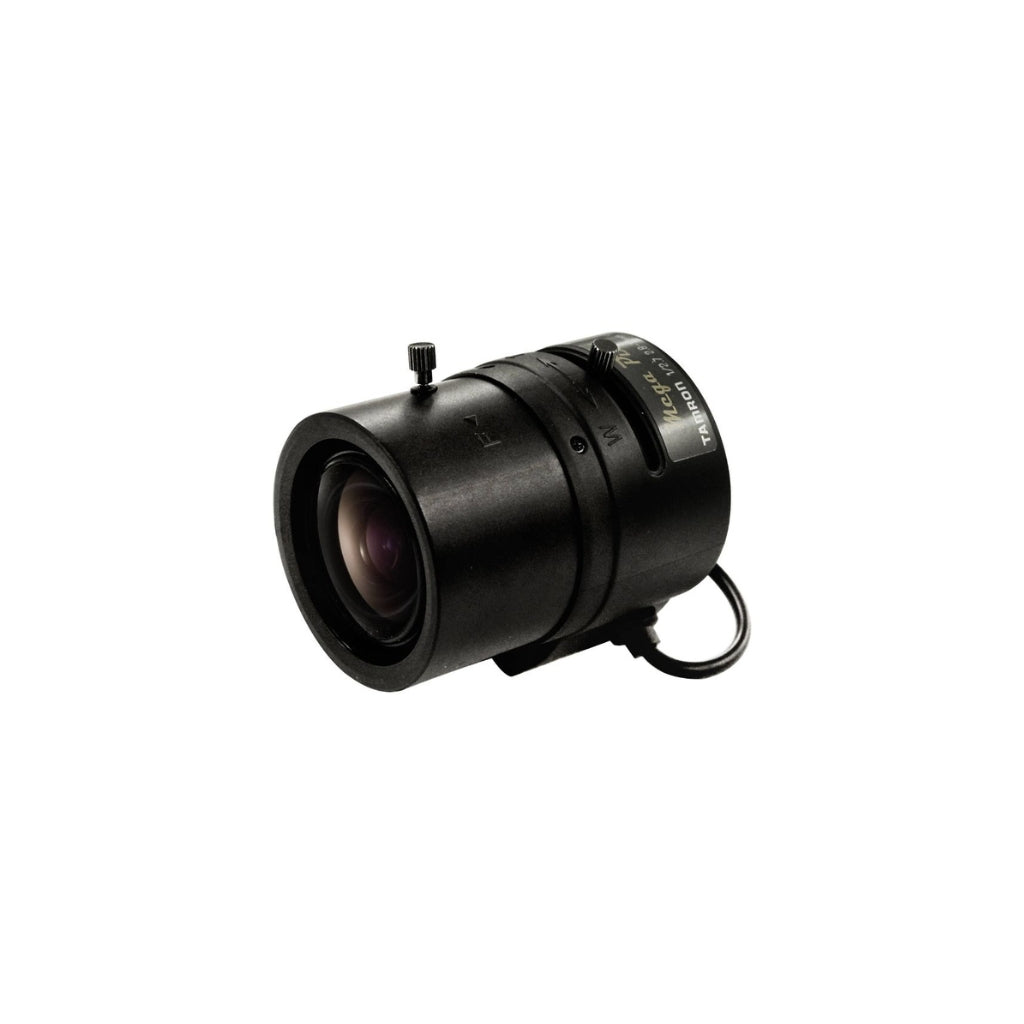

Tamron M13VG2812IR 1/2.7" 2.8-12mm F/1.4 Aspherical Mega-Pixel Vari-Focal Lens

Tamron M13VG2812IR 1/2.7" 2.8-12mm F/1.4 Aspherical Mega-Pixel Vari-Focal Lens

SKU:M13VG2812IR

Regular price $119.00 USD
Regular price Sale price $119.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Enhance Your Imaging Precision with the Tamron M13VG2812IR Vari-Focal Lens

Product Spec Sheet

The Tamron M13VG2812IR is a top-tier 1/2.7" 2.8-12mm F/1.4 aspherical mega-pixel vari-focal lens designed to meet the rigorous demands of modern machine vision and industrial applications. This lens boasts a wide aperture range of F/1.4 to 360, ensuring excellent performance in various lighting conditions, from visible light to near infrared. Its focal length range of 2.8-12mm provides flexibility for different imaging requirements, and the CS mount type ensures compatibility with a wide range of cameras.

With a manual focus and zoom that include locking mechanisms, users can achieve precise control over their imaging, while the DC auto iris adjusts to changing light conditions automatically. The lens offers a broad field of view, from 107°x79.3° at its widest on a 1/2.7" sensor to 18°x13.5° at its narrowest on a 1/4" sensor, making it versatile for various surveillance and industrial monitoring needs.

The Tamron M13VG2812IR is particularly beneficial for applications such as automated inspection systems, robotic vision, and security surveillance, where high resolution and reliability are paramount. Its robust design, withstanding temperatures from -20°C to +60°C, ensures dependable performance in harsh industrial environments. Enhance your imaging capabilities with this advanced lens solution from Tamron.

Features:

  • 1/2.7" imager size
  • CS mount type
  • 2.8-12mm focal length
  • F/1.4 to 360 aperture range
  • Manual focus and zoom with lock
  • DC auto iris
  • Wide temperature operating range (-20°C to +60°C)
  • Visible light to near infrared wavelength compatibility

Applications:

  • Automated inspection systems
  • Robotic vision
  • Security surveillance
  • Industrial monitoring
  • High-resolution imaging solutions
