TAMRON M13VG550IR – Industrial Lens | CS-mount 1/3" 5–50mm Auto Iris IR

*Please note tariff fee is included in price*

SKU focus: M13VG550IR (TAMRON industrial lens) — sold by USA Security Systems.

Why choose the TAMRON M13VG550IR?

• Focal: 5–50mm
• Aperture: F5–F50
• Image format: 1/3" sensor coverage
• Mount: CS-mount
• Iris: Auto Iris
• IR: IR / Day-Night

Best-fit applications

• Industrial inspection (AOI), metrology, and quality control
• Factory automation, robotics guidance, and machine vision
• Sorting, labeling, barcode/ID reading, and measurement
• Security and intelligent imaging where consistent optics matter

Search terms this page targets

M13VG550IR, “TAMRON M13VG550IR lens”, and “5–50mm 1/3" lens”.

Superior Optics for Industrial and Machine Vision Applications

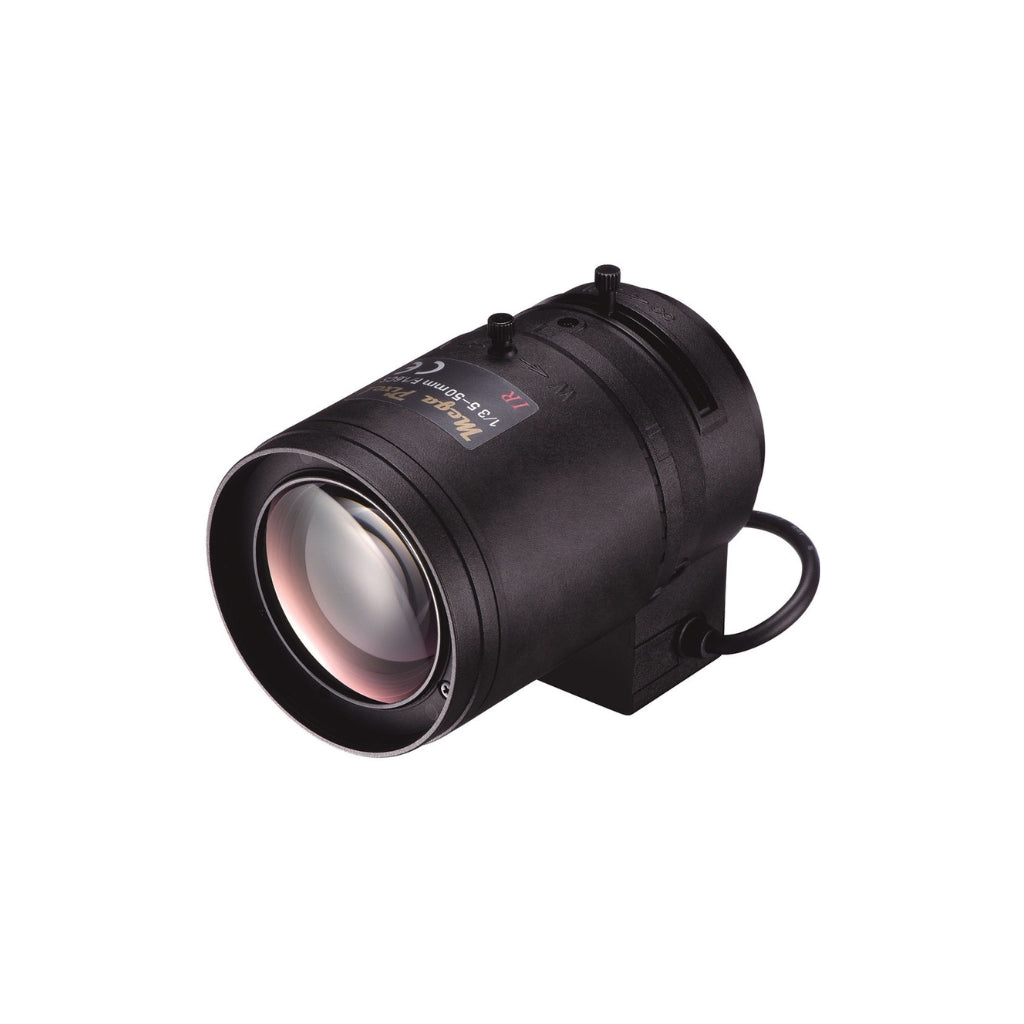

The Tamron M13VG550IR CS-Mount 5-50mm F/1.6 Zoom Lens is a top-tier choice for those seeking precision and reliability in their industrial and machine vision applications. Renowned for its robust construction and exceptional performance, this lens is designed to meet the demanding requirements of modern security systems.

With a focal length range of 5-50mm, it offers flexibility in capturing both wide-angle and telephoto perspectives. The wide aperture range from F/1.6 to F/360 allows for optimal performance in various lighting conditions, ensuring clear and sharp images. The lens supports a 1/3" imager size, and its manual zoom and focus features come with locks to maintain stability and accuracy.

The DC Auto Iris feature ensures automatic adjustment to changing light conditions, while its capability to work with visible light and near-infrared wavelengths makes it versatile for different environments. The Tamron M13VG550IR operates effectively within temperatures from -20°C to +60°C, making it suitable for diverse industrial settings. Weighing only 104g, it combines lightweight design with rugged durability.

Ideal for enhancing the capabilities of your machine vision systems, this lens is perfect for applications requiring detailed inspection, surveillance, and precise measurement. Choose Tamron for superior quality and performance in your industrial lens needs.

Features:

• CS-Mount with 5-50mm focal length
• F/1.6 to F/360 aperture range
• Manual zoom and focus with locks
• DC Auto Iris for light adjustment
• Visible light and near-infrared compatibility
• Operates in -20°C to +60°C temperature range
• Lightweight at 104g

Applications:

• Quality control and inspection
• Surveillance and security systems
• Precision measurement
• Automated production line monitoring
• Environmental monitoring
• Research and development

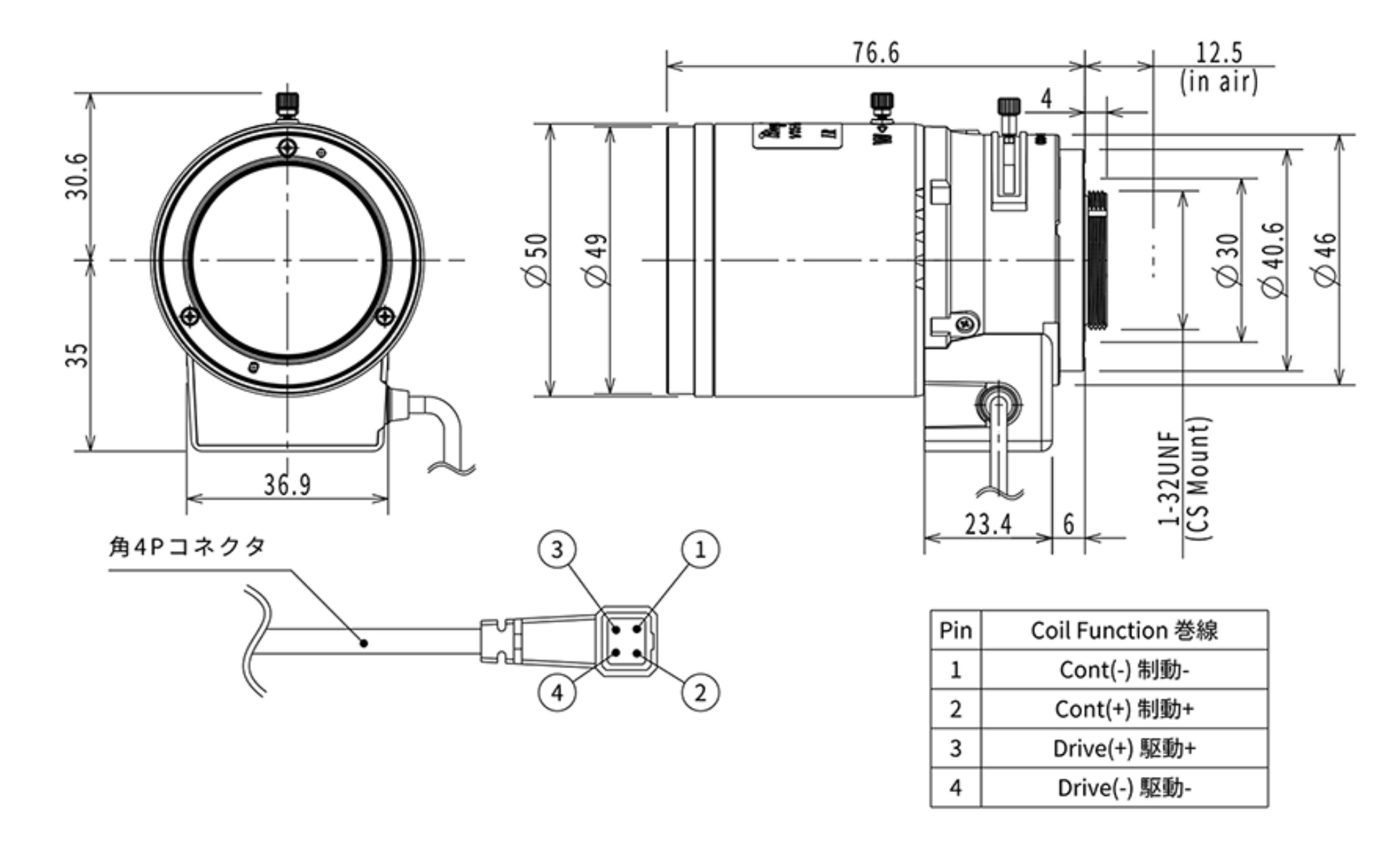

Imager Size	1/3"
Mount	CS
Focal Length	5 to 50 mm
Aperture Range	F/1.6 to 360
Angle of View (1/3")	Wide: 53° x 40°, Tele: 5.6° x 4.2°
Angle of View (1/4")	Wide: 40° x 30°, Tele: 4.2° x 3.2°
Focus Range	1m ～ ∞
Focus Adjustment	Manual lock
Zoom Adjustment	Manual lock
Iris Type	DC Auto Iris
Back Focus	Wide: 13.71mm (in air), Tele: 17.87mm (in air)
Compatible Wavelengths	Visible light range to near infrared range
Operating Voltage	OPEN: 4V, CLOSE: 0.5V
Mass	104g, Soil 10g
Operating Temperature Range	-20℃ to +60℃
