TAMRON M13VG555IR – Industrial Lens | 1/2.7" 5–55mm P-Iris IR

*Please note tariff fee is included in price*

SKU focus: M13VG555IR (TAMRON industrial lens) — sold by USA Security Systems.

Why choose the TAMRON M13VG555IR?

• Focal: 5–55mm
• Aperture: F5–F55
• Image format: 1/2.7" sensor coverage
• Iris: P-Iris
• IR: IR / Day-Night
• Optics: Aspheric optics

Best-fit applications

• Industrial inspection (AOI), metrology, and quality control
• Factory automation, robotics guidance, and machine vision
• Sorting, labeling, barcode/ID reading, and measurement
• Security and intelligent imaging where consistent optics matter

Search terms this page targets

M13VG555IR, “TAMRON M13VG555IR lens”, and “5–55mm 1/2.7" lens”.

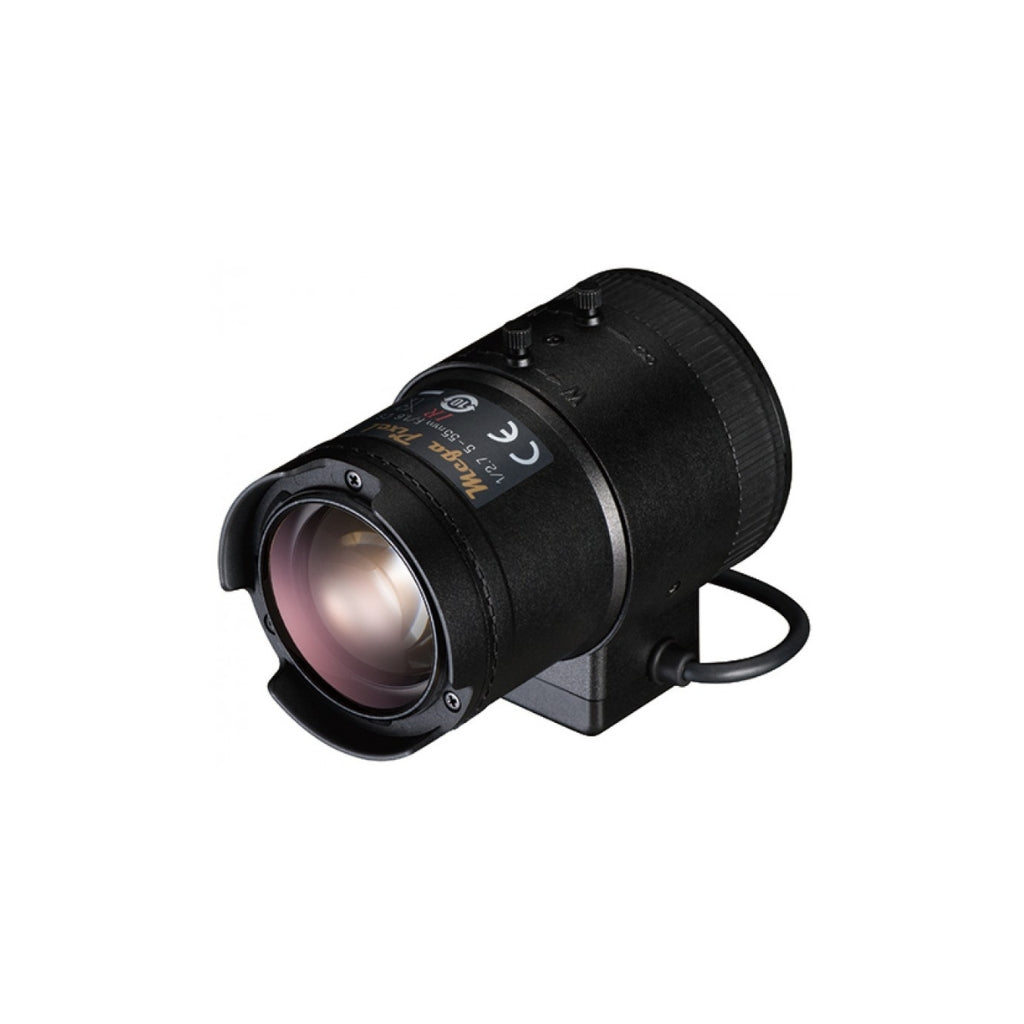

Optimize Your Imaging with Tamron's M13VG555IR Aspherical Vari-Focal P-Iris Lens

Tamron, a renowned brand in the optical industry, presents the M13VG555IR Aspherical Vari-Focal P-Iris Lens, tailored for machine vision and industrial applications. This lens features a versatile focal length range of 5-55mm, making it ideal for diverse imaging needs. Its compatibility with Mega Pixel sensors ensures high-resolution imaging, crucial for detailed inspection and security surveillance.

Designed with a CS mount and supporting an imager size of 1/2.7, the M13VG555IR offers a broad aperture range from f/1.6 to f/360. This adaptability allows for optimal performance under varying light conditions, from bright environments to near-infrared wavelengths. The lens's manual focus and zoom, both equipped with locks, provide precision control, ensuring stability and accuracy in critical applications.

Industries can greatly benefit from this lens, especially those involved in automated inspections, robotics, and security systems. The wide operating temperature range of -20°C to +60°C and its robust construction, weighing approximately 109.6 grams, make it suitable for challenging industrial environments. Additionally, the DC auto iris function aids in maintaining consistent image quality, further enhancing its applicability in dynamic settings.

By incorporating the Tamron M13VG555IR into their systems, businesses can achieve superior imaging performance, leading to enhanced productivity and security.

Features:

• Focal length range: 5-55mm
• Aperture range: f/1.6 to f/360
• Compatible with 1/2.7" and 1/3" imagers
• Manual focus and zoom with locks
• DC auto iris
• Visible light to near-infrared compatibility
• Operating temperature: -20°C to +60°C
• Weight: 109.6g ± 5g

Applications:

• Automated inspections
• Security surveillance systems
• Robotics vision
• Quality control systems
• Industrial automation
• Traffic monitoring systems
• Medical imaging devices
• Agricultural monitoring systems

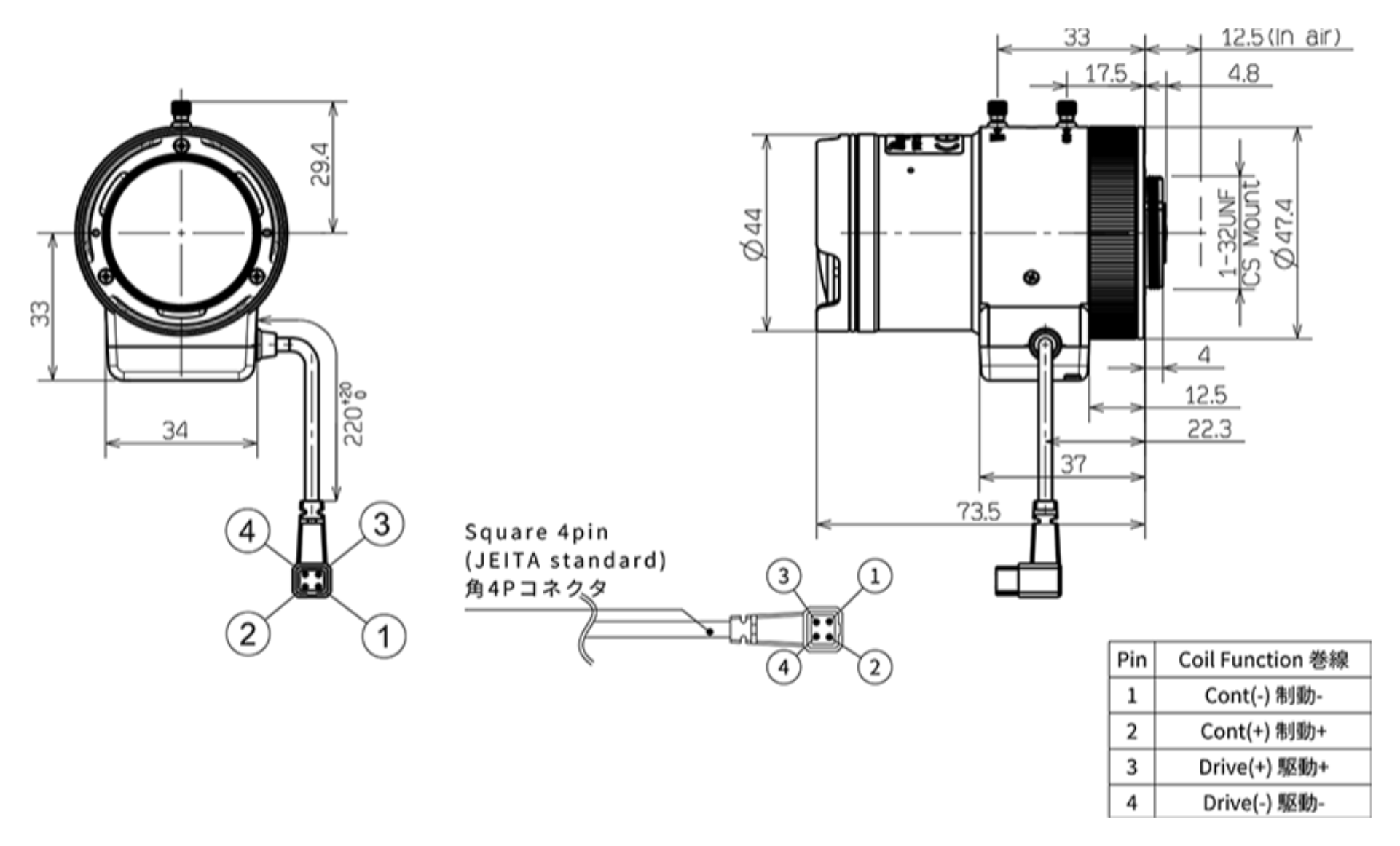

Imager Size	1/2.7"
Mount	CS
Focal Length	5 to 55 mm
Aperture Range	F/1.6 to F/360
Angle of View	1/2.7" Wide 61.3° x 35.6°, Tele 6.0° x 3.5° 1/3" Wide 56.2° x 32.4°, Tele 5.5° x 3.2°
Focus Range	2m to infinity
How to Use	Focus with manual lock, Zoom with manual lock
Iris	DC Auto Iris
Back Focus	7.69mm (in air)
Compatible Wavelengths	Visible light range to near infrared range
Operating Voltage	OPEN: 4.0V, CLOSE: 0.5V
Mass	109.6g ± 5g
Operating Temperature Range	-20℃ to +60℃
