TAMRON M13VM288IR – Industrial Lens | 1/3" 2.8–8mm IR

*Please note tariff fee is included in price*

SKU focus: M13VM288IR (TAMRON industrial lens) — sold by USA Security Systems.

Why choose the TAMRON M13VM288IR?

• Focal: 2.8–8mm
• Aperture: F2.8–F8
• Image format: 1/3" sensor coverage
• IR: IR / Day-Night
• Optics: Aspheric optics

Best-fit applications

• Industrial inspection (AOI), metrology, and quality control
• Factory automation, robotics guidance, and machine vision
• Sorting, labeling, barcode/ID reading, and measurement
• Security and intelligent imaging where consistent optics matter

Search terms this page targets

M13VM288IR, “TAMRON M13VM288IR lens”, and “2.8–8mm 1/3" lens”.

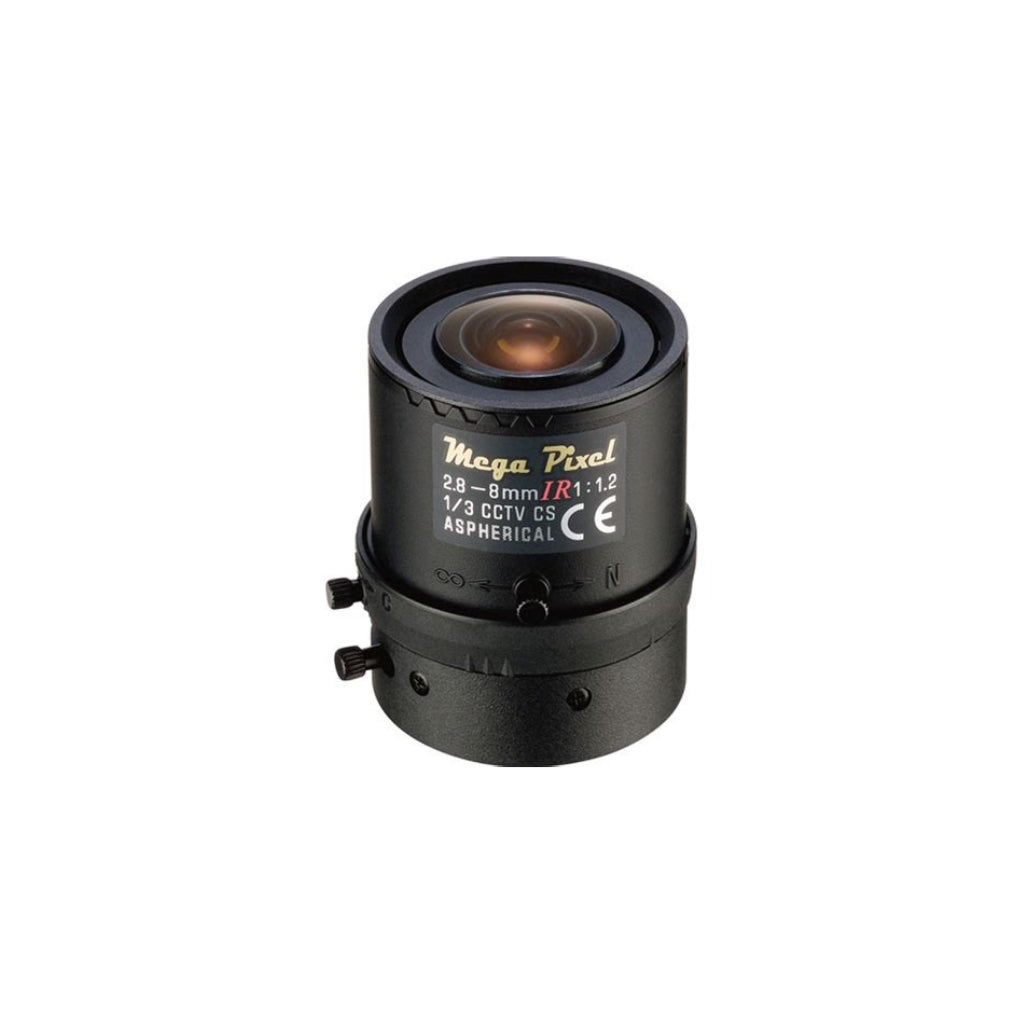

Tamron M13VM288IR 1/3" 2.8-8mm F/1.2 Aspherical Mega Pixel IR Compatible Vari-Focal CCTV Lens

Tamron is renowned in the lens industry for delivering high-quality optics designed for both security and industrial applications. The Tamron M13VM288IR 2.8-8mm F/1.2 Aspherical Mega Pixel IR compatible Vari-Focal CCTV Lens exemplifies their commitment to precision and reliability. This lens features a versatile focal length range of 2.8-8mm and an aperture range from F/1.2 to close, ensuring exceptional performance in various lighting conditions. With a CS mount and manual adjustments for focus, zoom, and iris, it offers flexibility for installation and optimization.

Customers in security systems and industrial automation benefit from the Tamron M13VM288IR’s ability to capture detailed images across wide fields of view, from 100.1° x 72.9° in wide-angle to 35.8° x 26.8° in telephoto. It supports imagers up to 1/3" in size and is compatible with visible light and near-infrared wavelengths, making it suitable for day-night surveillance and machine vision tasks in diverse environments. Whether enhancing surveillance systems or improving manufacturing processes, this lens provides the clarity and reliability required for critical applications.

Features:

• Focal Length: 2.8-8mm
• Aperture Range: F/1.2 - Close
• CS Mount
• Manual Focus, Zoom, and Iris
• Aspherical Design for Enhanced Image Quality
• IR Compatible for Day-Night Applications

Applications:

• Security and surveillance systems
• Industrial automation and robotics
• Quality control and inspection
• Traffic monitoring and management

Imager Size	1/2.7"
Mount	CS
Focal Length	2.8 to 8 mm
Aperture Range	F/1.2 - Close
Angle of View (Horizontal x Vertical)	1/2.7": Wide: 124.3° x 65.2° - Tele: 43° x 24.2° 1/3": Wide: 100.1° x 72.9° - Tele: 35.8° x 26.8° 1/4": Wide: 72.9° x 53.9° -  Tele: 26.8° x 20.1°
Focus Range	0.3m to infinity
Focus	With manual lock
Zoom	With manual lock
Iris	With manual lock
Back Focus	Wide: 8.339mm (in air)Tele: 14.944mm (in air)
Compatible Wavelengths	Visible light range to near infrared range
Weight	61g
Operating Temperature Range	-20℃ to +60℃
