TAMRON MA111F16VIR – Industrial Lens | C-mount 2/3" 16mm IR

*Please note tariff fee is included in price*

SKU focus: MA111F16VIR (TAMRON industrial lens) — sold by USA Security Systems.

Why choose the TAMRON MA111F16VIR?

• Focal: 16mm
• Aperture: F16
• Image format: 2/3" sensor coverage
• Mount: C-mount
• IR: IR / Day-Night
• Optics: Aspheric optics

Best-fit applications

• Industrial inspection (AOI), metrology, and quality control
• Factory automation, robotics guidance, and machine vision
• Sorting, labeling, barcode/ID reading, and measurement
• Security and intelligent imaging where consistent optics matter

Search terms this page targets

MA111F16VIR, “TAMRON MA111F16VIR lens”, and “16mm 2/3" lens”.

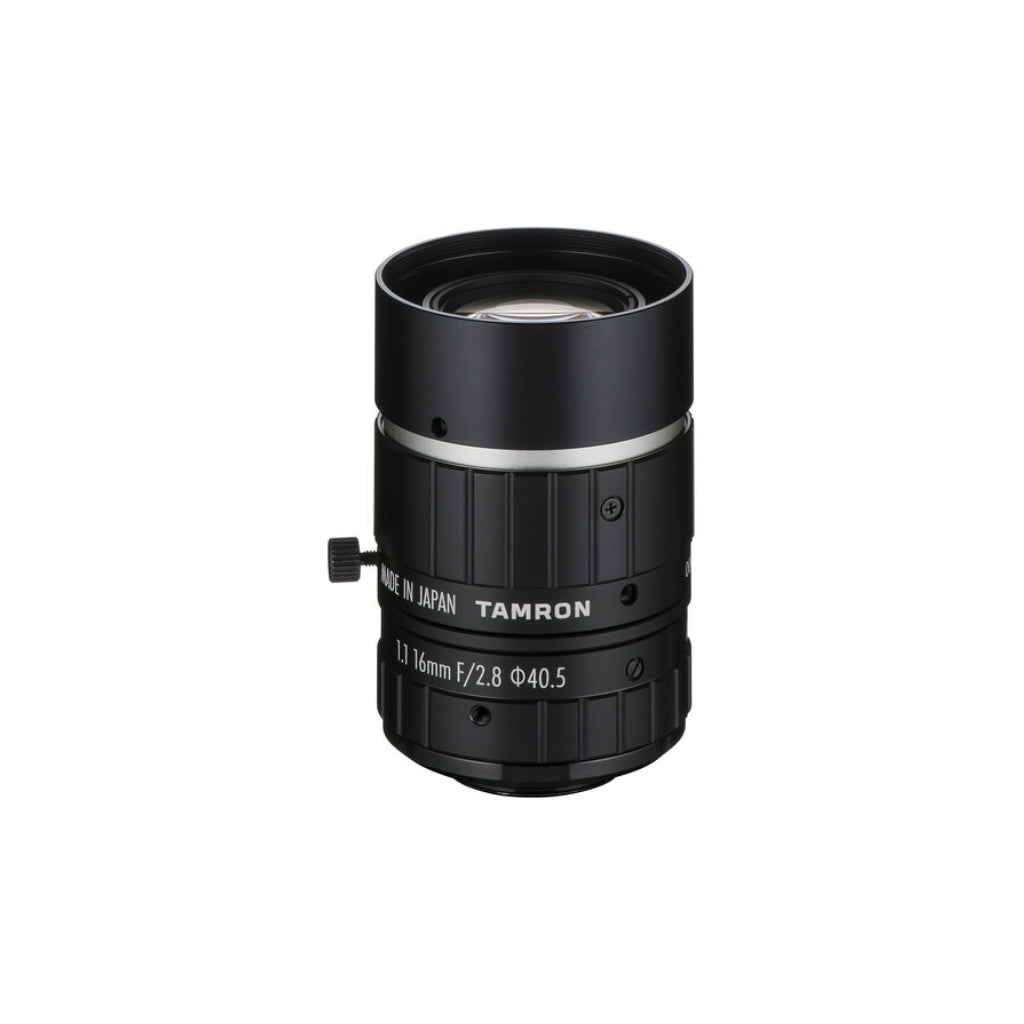

Tamron MA111F16VIR 16mm F/2.8 Mega Pixel Fixed-Focal Lens

Tamron's MA111F16VIR 1.1” 16mm F/2.8 lens is designed for high-performance industrial and machine vision applications, ensuring exceptional clarity and precision. With compatibility across various imager sizes and infrared wavelengths, this C-mount lens offers versatile imaging capabilities.

Its manual focus and iris control with lock mechanisms provide reliability in diverse operating conditions, from -20°C to +60°C. Weighing just 178g, it combines lightweight portability with robust durability. Ideal for use in automated inspection, quality control, robotics, and surveillance systems where sharp, distortion-free imaging is crucial. As a leading distributor of Tamron lenses, USA Security Systems Inc. delivers superior optical solutions tailored to enhance your industrial vision applications.

Features:

• 1.1” imager size compatibility
• F/2.8 - 16 aperture range
• Manual focus and iris with lock
• Lightweight at 178g
• Visible light to near infrared wavelength compatibility

Applications:

• Automated inspection
• Quality control systems
• Robotics
• Surveillance

Imager Size	1.1"
Mount	C
Focal Length	16mm
Iris Range	F/2.8 to F/16
Angle of View (1.1")	47.7° x 36.8°
Angle of View (2/3")	30.8° x 23.3°
Angle of View (1/2")	22.6° x 17.0°
Focus Range	0.1m to infinity
Focus Control	With manual lock
Iris Control	With manual lock
Filter Thread Diameter	M40.5 P=0.5
Compatible Wavelengths	Visible light range to near infrared
Distortion	0.2% (*)
Mass	178g
Operating Temperature Range	-20℃ to +60℃
