TAMRON MA111F25VIR – Industrial Lens | 2/3" 25mm IR

*Please note tariff fee is included in price*

SKU focus: MA111F25VIR (TAMRON industrial lens) — sold by USA Security Systems.

Why choose the TAMRON MA111F25VIR?

• Focal: 25mm
• Aperture: F25
• Image format: 2/3" sensor coverage
• IR: IR / Day-Night

Best-fit applications

• Industrial inspection (AOI), metrology, and quality control
• Factory automation, robotics guidance, and machine vision
• Sorting, labeling, barcode/ID reading, and measurement
• Security and intelligent imaging where consistent optics matter

Search terms this page targets

MA111F25VIR, “TAMRON MA111F25VIR lens”, and “25mm 2/3" lens”.

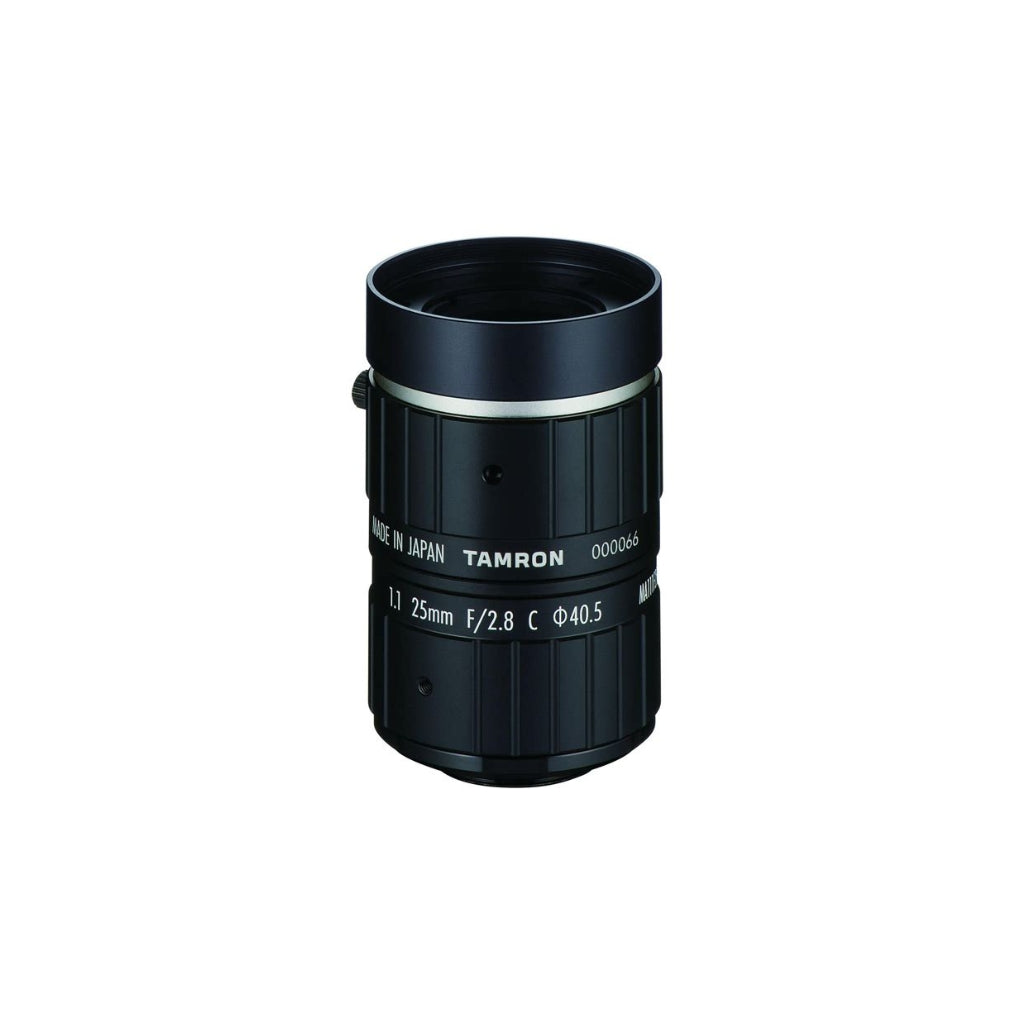

Enhance Precision with the Tamron MA111F25VIR 1.1” 25mm F/2.8 Lens

Tamron lenses are renowned in the industrial and machine vision sectors for their precision and reliability. The Tamron MA111F25VIR 1.1” 25mm F/2.8 Mega Pixel Fixed-Focal Lens exemplifies this reputation with its high-quality construction and advanced optical features. Designed for compatibility with 1.1" mega-pixel sensors, it offers a versatile 25mm focal length and a wide aperture range from F/2.8 to F/16. This allows for exceptional clarity and detail capture in various imaging scenarios.

Ideal for applications requiring precise manual adjustments, the lens features manual focus and iris controls with locking mechanisms, ensuring stable settings in demanding environments. Its compact design and lightweight (196g) construction make it suitable for integration into automated systems and robotics. The lens also supports near-infrared wavelengths, extending its usefulness in low-light conditions and night vision setups.

Tamron lenses like the MA111F25VIR are perfect for industrial inspection, robotics, quality control, and surveillance systems where image clarity and reliability are paramount. Whether for monitoring production lines or enhancing security measures, this lens delivers exceptional performance, making it a preferred choice among professionals in the field.

Features:

• 25mm focal length with F/2.8 aperture
• Manual focus and iris with locking mechanisms
• Compatible with 1.1" mega-pixel sensors
• Near-infrared wavelength support
• Lightweight and compact design

Applications:

• Industrial inspection
• Robotics guidance
• Quality control systems
• Surveillance and security

Imager Size	1.1"
Mount Type	C
Focal Length	25mm
Aperture Range	F/2.8 ～ 16
Field Of View (H x V)	1.1": 31.7°x 23.9° 2/3": 20.0° x 15.0° 1/2": 14.6° x 10.9°
Focusing Range	0.1m ～ ∞
Operation	Focus: With manual lock Iris: With manual lock
Filter Size	M40.5 P=0.5mm
Wave-Length	Visible-light ~ NIR (Near Infrared)
TV Distortion	-0.3%
Weight	196g
Operating Temperature	-20℃ ～ +60℃
