TAMRON MA23F25V – Industrial Lens | 2/3" 25mm

*Please note tariff fee is included in price*

SKU focus: MA23F25V (TAMRON industrial lens) — sold by USA Security Systems.

Why choose the TAMRON MA23F25V?

• Focal: 25mm
• Aperture: F25
• Image format: 2/3" sensor coverage
• Optics: Aspheric optics

Best-fit applications

• Industrial inspection (AOI), metrology, and quality control
• Factory automation, robotics guidance, and machine vision
• Sorting, labeling, barcode/ID reading, and measurement
• Security and intelligent imaging where consistent optics matter

Search terms this page targets

MA23F25V, “TAMRON MA23F25V lens”, and “25mm 2/3" lens”.

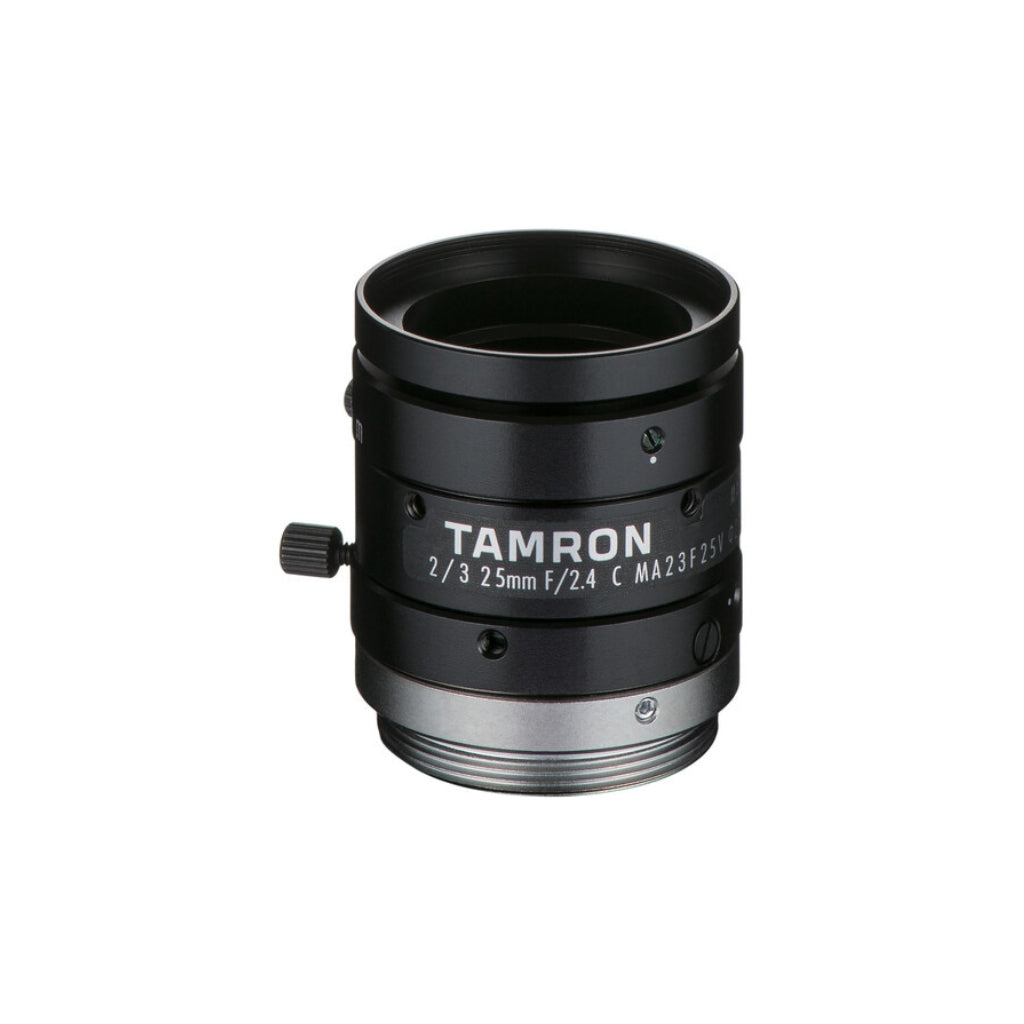

Tamron MA23F25V 2/3" 25mm F/2.4 Fixed-Focal Lens

The Tamron MA23F25V 2/3" 25mm F/2.4 Fixed-Focal Lens stands out in the realm of industrial and machine vision applications for its exceptional clarity and precise imaging capabilities. As a leading distributor of machine vision lenses, USA Security Systems Inc. offers this Tamron lens, known for its versatility across various imaging tasks.

With an aperture range from F/2.4 to F/16, it accommodates different lighting conditions while maintaining sharpness and contrast. The manual focus and iris with lock capabilities ensure stable adjustments ideal for fixed focal length requirements in industrial setups. Weighing just 55g and designed for a wide temperature range (-20°C to +60°C), it is robust enough for demanding environments.

Features:

• Focal Length: 25mm
• Imager Size Compatibility: 2/3"
• Aperture Range: F/2.4 - F/16
• Manual Focus and Iris with Lock
• Lightweight at 55g
• Wide Operating Temperature Range: -20°C to +60°C

Applications:

• Machine Vision Systems
• Automated Inspection
• Robotics Vision
• Quality Control
• Surveillance Systems

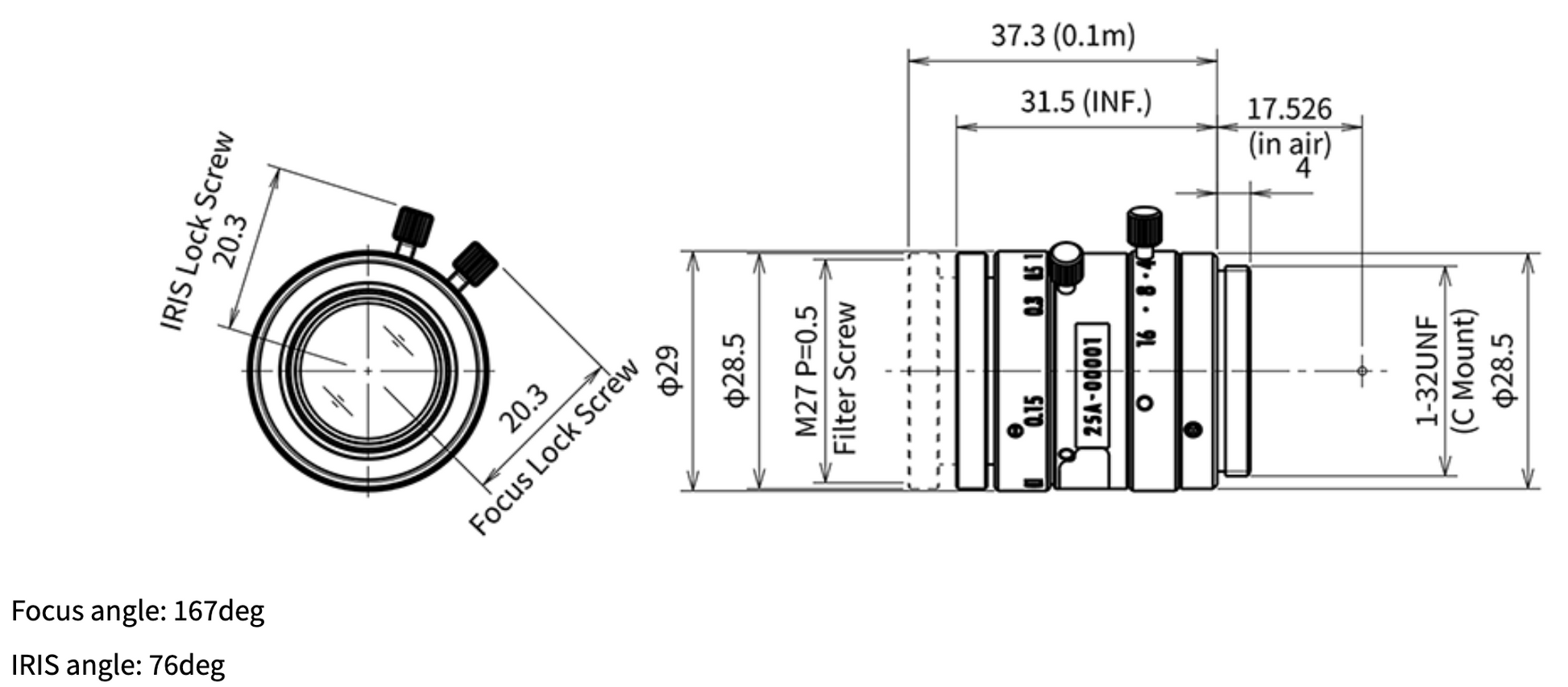

Imager Size	2/3"
Mount	C
Focal Length	25mm
Aperture Range	F/2.4 to F/16
Angle of View 2/3" (1:1)	16.9° x 16.9°
Angle of View 2/3" (4:3)	18.9° x 14.3°
Angle of View 2/3" (16:9)	20.6° x 11.7°
Angle of View 1/1.8"(4:3)	14.9° x 11.3°
Angle of View 1/2"(4:3)	13.8° x 10.4°
Angle of View 1/3"(4:3)	10.4° x 7.8°
Focus Range	0.1m～∞ (Recommended Shooting Distance: 0.3m)
Focus	With manual lock
Iris	With manual lock
Filter Thread Diameter	M27 P=0.5mm
Compatible Wavelengths	Visible light range
Distortion	-0.01%
Mass	55g
Operating Temperature Range	-20℃ to +60℃
