USA Security Systems

SMA11F16

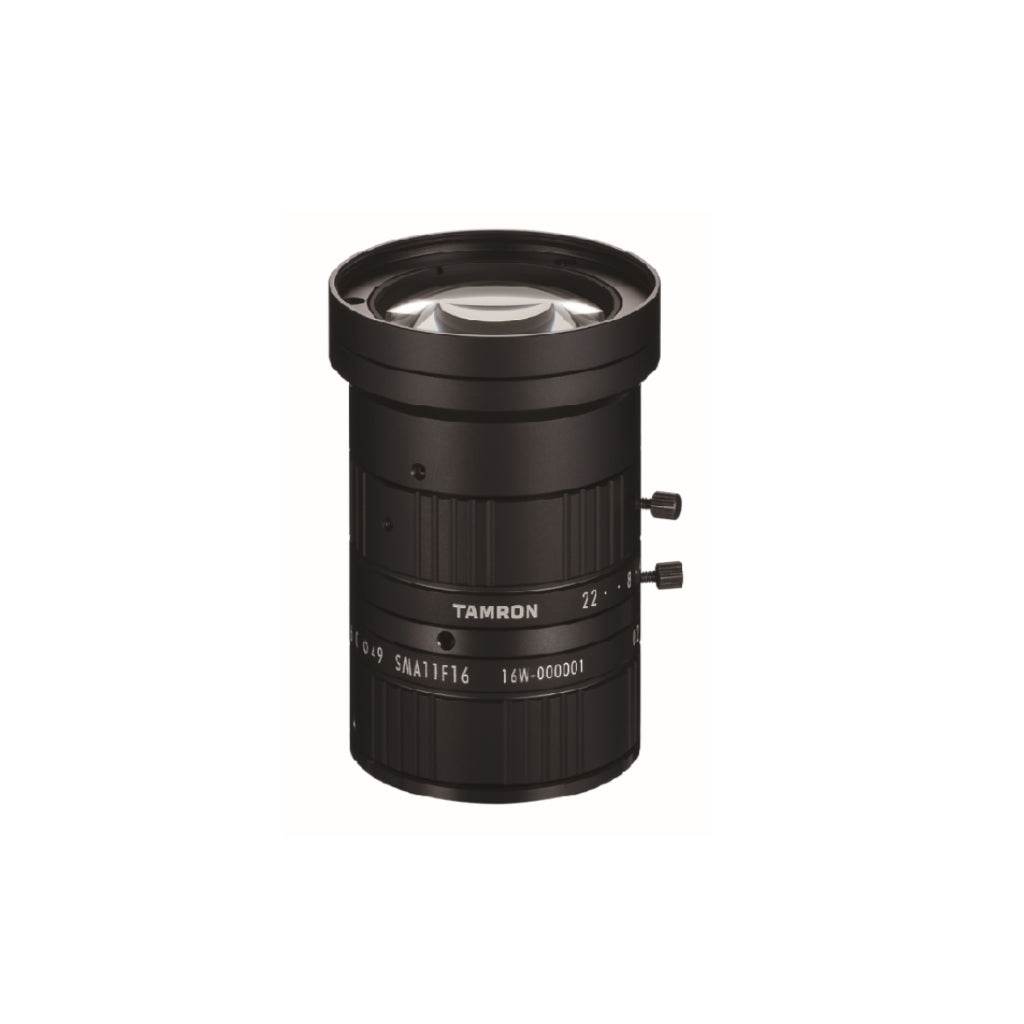

Tamron SMA11F16 1” SWIR 16mm F/1.6 Manual Lens Fully compatible with IMX990/IMX991

Tamron SMA11F16 1” SWIR 16mm F/1.6 Manual Lens Fully compatible with IMX990/IMX991

SKU:SMA11F16

Regular price $2,459.00 USD
Regular price Sale price $2,459.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Enhance Your Vision with Tamron SMA11F16 1” SWIR 16mm F/1.6 Manual Lens

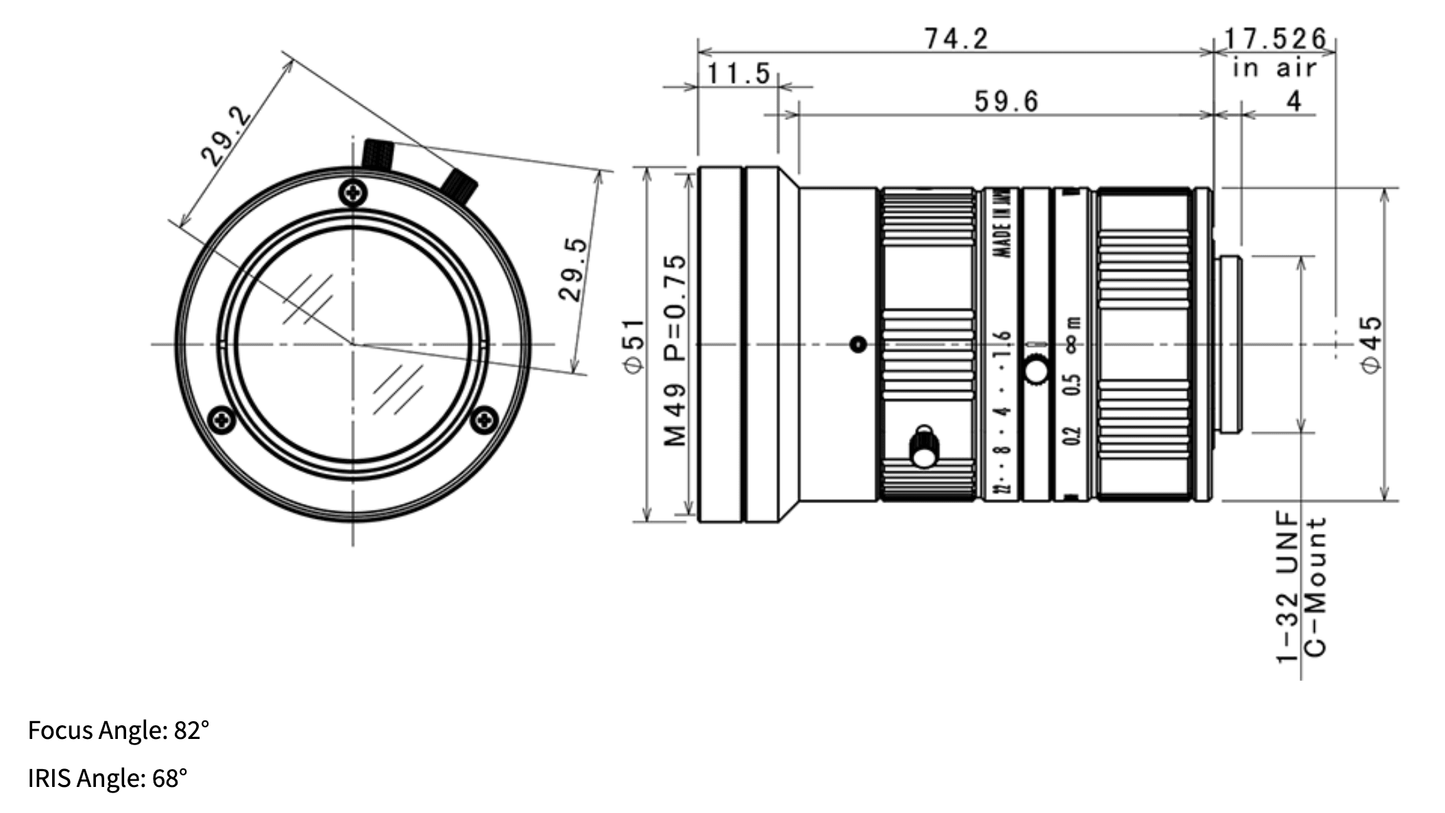

Product Spec Sheet

Tamron, renowned for optical excellence, presents the SMA11F16 1” SWIR 16mm F/1.6 Manual Lens, designed for demanding industrial and machine vision environments. This lens combines precision engineering with versatile compatibility, making it fully suitable for IMX990 and IMX991 sensors. With a focal length of 16mm and a wide aperture range from f/1.6 to f/22, it offers exceptional clarity and light sensitivity across varying lighting conditions.

Engineered with a manual focus and iris control mechanism, the lens ensures precise adjustments and stable performance. It features a robust build suitable for operating temperatures ranging from -20°C to +60°C, catering to diverse industrial settings. The lens is optimized with a M49 P=0.75mm filter size and provides a broad wavelength range from 400nm to 1700nm, facilitated by its Wide Band Coating (WBC-V-SWIR).

Tamron SMA11F16 1” SWIR 16mm F/1.6 Manual Lens offers precision and versatility for industrial and machine vision. Optimize your imaging capabilities today!

Features:

  • 1” SWIR 16mm lens
  • Manual focus and iris control
  • Wide band coating for enhanced clarity
  • Compatible with IMX990/IMX991
  • Operating temperature range: -20°C to +60°C

Applications:

  • Quality control inspections
  • Robotics and automation
  • Semiconductor inspection
  • Thermal imaging
  • Surveillance
