Videology 201-IP-462-XC 2MP IP Board Camera
Videology 201-IP-462-XC 2MP IP Board Camera
SKU:201-IP-462-XC
Couldn't load pickup availability
Videology 201-IP-462-XC 2MP IP Board Camera
The Videology 201-IP-462-XC is a compact, Made in USA 2MP IP board camera designed for embedded vision, OEM surveillance, robotics, industrial automation, machine vision, intelligent traffic, and low-light imaging applications.
Built around a 1/2.8” Sony IMX462LQR-C STARVIS CMOS sensor, this board-level IP camera delivers full HD 1920 x 1080 resolution with excellent low-light sensitivity down to approximately 0.001 lux. Its compact 38 x 38 x 6.7 mm board design makes it ideal for space-constrained systems that require reliable IP video, edge processing, and easy integration.
The 201-IP-462-XC is powered by a quad-core 64-bit RISC-V processor running embedded Linux, giving system designers a flexible platform for advanced imaging, configuration, and network streaming. With support for H.265, H.264, and MJPEG compression, the camera helps optimize video quality, bandwidth usage, and storage requirements across a wide range of industrial and security applications.
Real-time video streaming is supported through RTSP, while HTTP API control allows camera configuration and automation within custom software environments. The camera also includes 10/100 Mbps Ethernet with onboard magnetics, a microSD card slot for local storage, and 4 GPIO pins for custom I/O control.
As an NDAA-compliant American-made IP camera module, the Videology 201-IP-462-XC is a strong choice for OEM security systems, government-compliant surveillance platforms, robotics vision, traffic monitoring, IoT imaging nodes, and embedded machine vision projects.
Key Features:
- 2MP Sony IMX462LQR-C STARVIS CMOS sensor
- Full HD 1920 x 1080 resolution
- Excellent low-light sensitivity down to approximately 0.001 lux
- Compact 38 x 38 x 6.7 mm board-level camera design
- Made in USA and NDAA compliant
- Quad-core 64-bit RISC-V processor with embedded Linux
- H.265, H.264, and MJPEG video compression
- RTSP real-time video streaming
- HTTP API support for camera configuration and automation
- Up to 60 fps depending on network and configuration
- Up to 5 video streams
- Typical latency under 150 ms
- 10/100 Mbps Ethernet with onboard magnetics
- MicroSD card slot for local storage
- 4 GPIO pins for custom I/O control
- +12V DC power input
- Lens mount options: none, pinhole, M12, or CS mount
Applications:
- Embedded vision systems
- OEM IP camera integration
- Machine vision applications
- Industrial automation imaging
- Robotics vision platforms
- UAV, drone, and compact imaging systems
- Surveillance and security cameras
- Intelligent traffic and transportation monitoring
- IoT imaging nodes
- Low-light video capture
- Government-compliant NDAA camera systems
Technical Specifications
| Model | Videology 201-IP-462-XC |
| Image Sensor | 1/2.8” Sony IMX462LQR-C CMOS |
| Effective Pixels | 1920 x 1080 Full HD |
| Pixel Size | 2.9μm x 2.9μm |
| Sensitivity | Approximately 0.001 lux |
| Frame Rate | Up to 60 fps |
| Aspect Ratio | 16:9, 4:3 |
| Shutter Type | Rolling, Auto, Manual |
| Scan Type | Progressive |
| Processor | Quad-core 64-bit RISC-V |
| Operating System | Embedded Linux |
| Compression | H.265, H.264, MJPEG |
| Video Streams | Up to 5 streams |
| Latency | Typical <150 ms |
| ISP Features | AWB, AE, WDR, DNR, Motion Detection, Virtual PTZ |
| Network Protocols | RTSP, HTTP API, DHCP, Static IP |
| Storage | MicroSD card slot |
| Ethernet | 10/100 Mbps with onboard magnetics |
| GPIO | 4 GPIOs via P2 connector |
| Power Input | +12V DC ±10% |
| Power Consumption | 2.4W typical |
| Operating Temperature | -10°C to 50°C |
| Humidity | 30% to 90% RH operating |

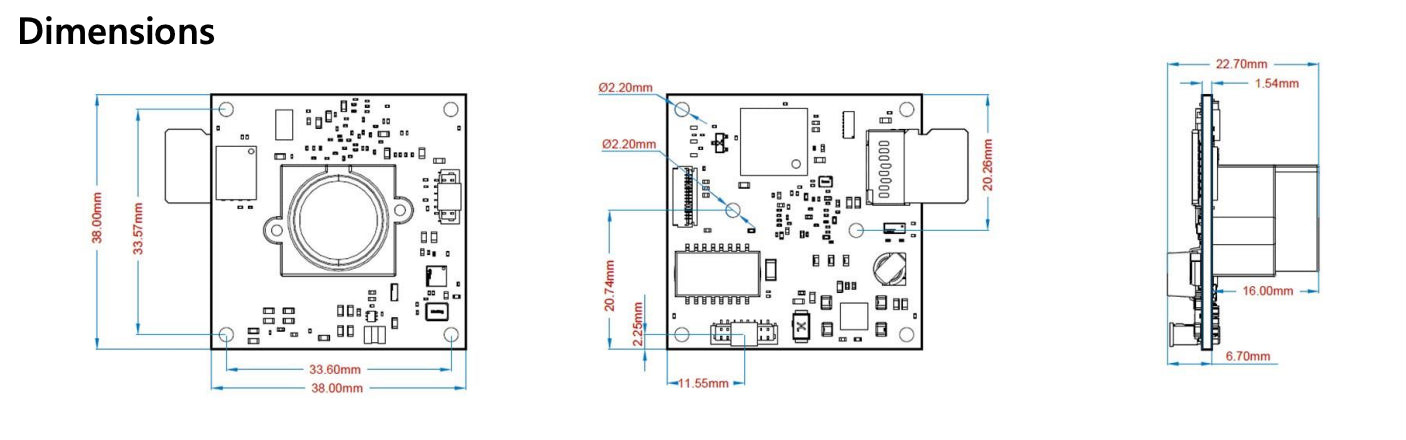

| Dimensions | 38 x 38 x 6.7 mm without lens mount |
| Lens Mount Options | None, Pin Hole, M12, CS |
| Compliance | NDAA Compliant |
| Country of Origin | USA |
Why Choose the Videology 201-IP-462-XC?
The Videology 201-IP-462-XC combines a high-sensitivity Sony STARVIS sensor, efficient IP video compression, embedded Linux processing, RTSP streaming, GPIO control, and microSD storage in a compact American-made board camera. For OEMs and integrators who need a reliable, NDAA-compliant 2MP IP camera module for embedded systems, security, robotics, automation, or low-light imaging, the 201-IP-462-XC offers a strong balance of performance, size, and integration flexibility.
