Videology 801-IP-678 4K IP Board-Level Camera

The Videology 801-IP-678 is a compact, USA-made 4K IP board camera designed for OEM imaging, robotics, machine vision, surveillance, industrial inspection, embedded vision, and AI-enabled video systems. Built around the Sony IMX678 Starvis 2 1/1.8” CMOS sensor, this NDAA-compliant camera delivers crisp 3840 x 2160 8MP video at up to 30fps with excellent low-light performance, efficient IP streaming, and rugged industrial reliability.

Measuring only 38mm x 38mm x 10mm and weighing approximately 9.5g, the 801-IP-678 is ideal for space-constrained embedded applications where high-resolution imaging, network video, and long-term availability matter. It supports H.265, H.264, and MJPEG compression with up to three simultaneous streams, allowing system integrators to balance image quality, storage, bandwidth, and latency requirements.

Powered by a quad-core 64-bit RISC-V processor running embedded Linux, the Videology 801-IP-678 gives developers a flexible platform for API-based configuration, programming, and onboard application development. With support for DHCP or static IP addressing, GPIO, RTC with battery backup, optional microSD storage, and optional autofocus, this 4K IP module is built for advanced embedded imaging systems.

The Sony Starvis 2 sensor provides 2.0µm pixels, progressive shutter imaging, and low-light sensitivity down to 0.05 lux, making the 801-IP-678 a strong choice for day/night monitoring, intelligent traffic, robotics, machine vision, UAV payloads, security integration, medical imaging devices, and industrial automation platforms.

Designed for harsh environments, the camera operates from -30°C to 80°C and supports 5–15VDC input with low power consumption. NDAA, RoHS, and REACH compliance make it suitable for industrial, commercial, government, and security-focused projects requiring trusted sourcing and reliable performance.

Key Features:

• 4K UHD 8MP IP board-level camera module
• Sony IMX678 Starvis 2 1/1.8” CMOS sensor
• 3840 x 2160 resolution up to 30fps
• 1920 x 1080 resolution up to 60fps
• Progressive shutter with 2.0µm pixel size
• H.265, H.264, and MJPEG video compression
• Up to three simultaneous IP video streams
• Quad-core 64-bit RISC-V processor with embedded Linux
• API support for programming and camera configuration
• Optional autofocus support
• M12 lens mount with 10mm or 16mm lens options
• GPIO support for system integration
• RTC with battery backup
• Optional microSD storage support
• Low-light sensitivity down to 0.05 lux
• Latency below 300ms

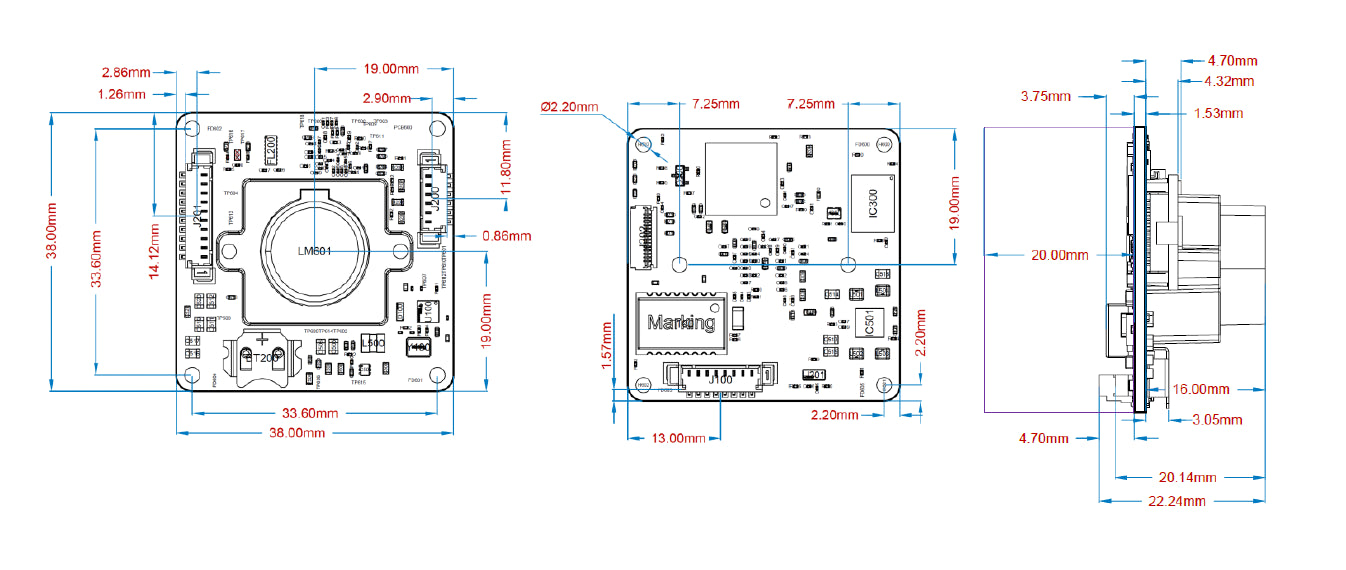

• Compact 38mm x 38mm x 10mm board design
• Lightweight 9.5g construction
• 5–15VDC power input
• Operates from -30°C to 80°C
• NDAA, RoHS, and REACH compliant
• Engineered and manufactured in the USA

Ideal Applications:

• Machine vision and automated inspection
• Robotics and autonomous systems
• UAV, drone, and unmanned imaging payloads
• AI vision and embedded video analytics
• Industrial monitoring and process control
• Security and surveillance integration
• Intelligent traffic and transportation systems
• Medical and scientific imaging devices
• OEM camera integration
• Low-light IP video applications

Technical Specifications

Why Choose the Videology 801-IP-678?

The Videology 801-IP-678 combines 4K Sony Starvis 2 image quality, compact board-level design, efficient IP streaming, embedded Linux processing, and NDAA-compliant USA manufacturing in one rugged camera module. For OEMs, engineers, security integrators, robotics developers, and industrial vision teams, it provides a powerful foundation for high-resolution embedded imaging systems.
