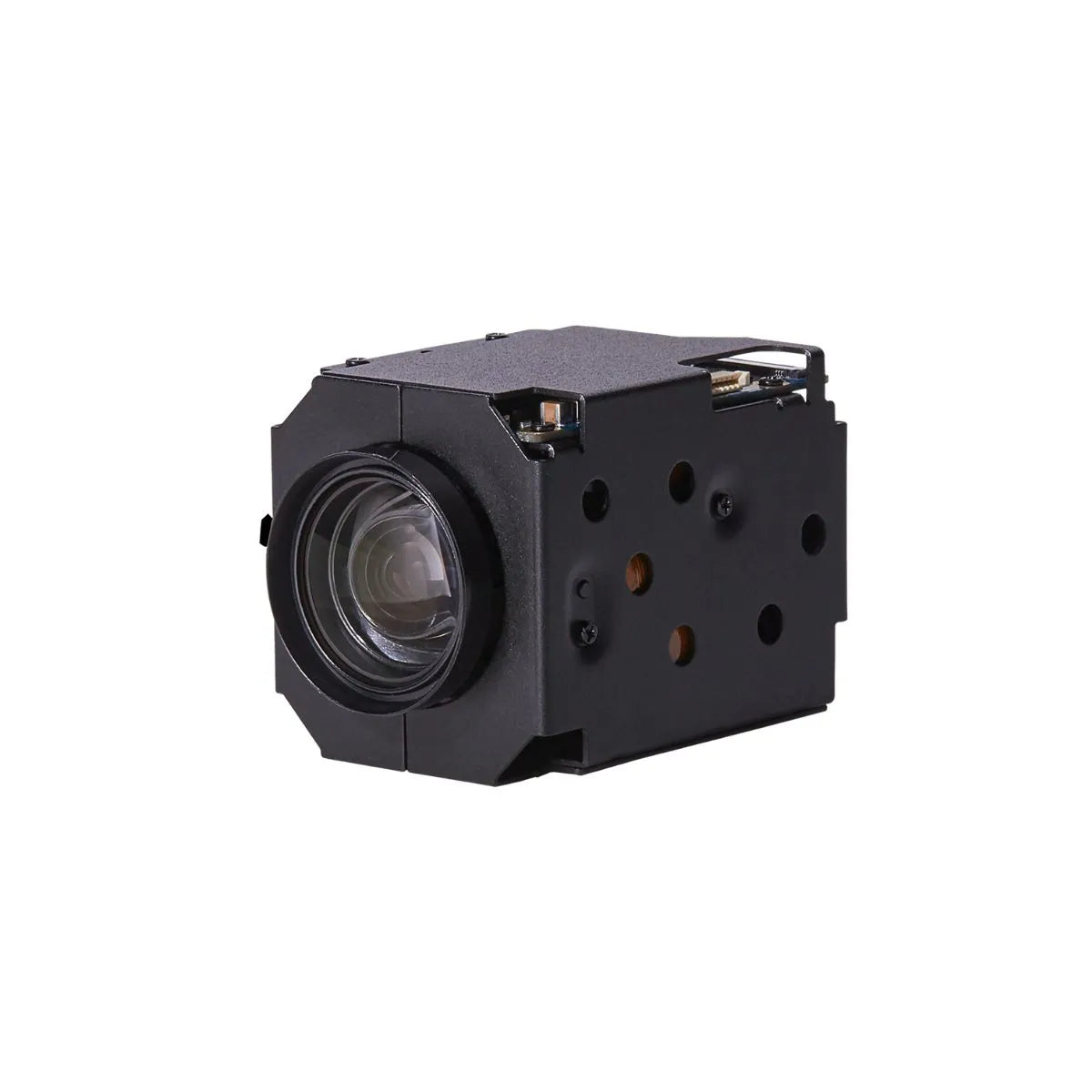

Wonwoo MC-105 2MP 10x Zoom Block Camera Module with Sony CMOS Sensor

The Wonwoo MC-105 is a next-generation 2MP block camera module designed for robust surveillance and security applications. Featuring a Sony CMOS sensor, this compact camera delivers full HD video at 1080p and 720p resolutions (up to 60fps), and is engineered for outstanding image clarity in changing lighting conditions with advanced Wide Dynamic Range and digital noise reduction technology.

Included is a powerful 10x optical zoom (4.7–47mm), 32x digital zoom, and multi-protocol control (VISCA, Pelco-D/P), making the MC-105 adaptable for various monitoring environments. Key features such as day/night operation with ICR, privacy masking, motion detection, image stabilization, and defog function ensure reliable performance in critical surveillance setups, from public safety to industrial security.

Features:

• Sony 1/2.8" 2MP CMOS Sensor
• Full HD 1080p/720p video, up to 60fps
• 10x Optical + 32x Digital Zoom
• Day/Night (ICR) & Wide Dynamic Range
• Digital Noise Reduction (2D + 3D)
• Privacy Mask & Motion Detection
• Digital Image Stabilization
• High Light Compensation & Defog
• VISCA, Pelco-D/P control protocols
• LVDS/CVBS video output

Applications:

• Surveillance Cameras
• CCTV Systems
• Traffic Monitoring
• Public Safety
• Industrial Security
• Access Control
• Retail Security
