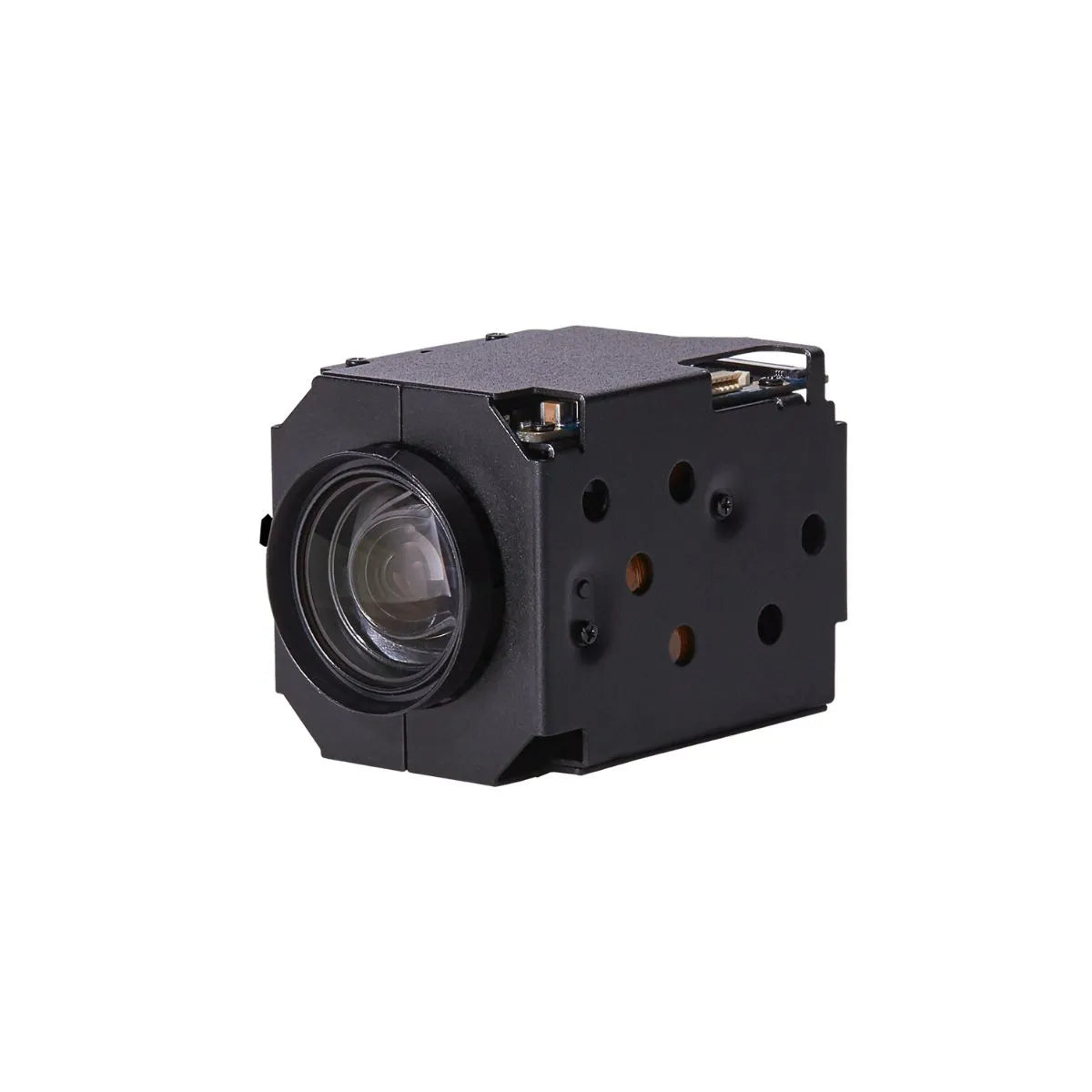

Wonwoo MC-105Q 4MP 10x Zoom Block Camera Module with Sony CMOS Sensor
Wonwoo MC-105Q 4MP 10x Zoom Block Camera Module with Sony CMOS Sensor
SKU:MC-105Q
Couldn't load pickup availability
The Wonwoo MC-105Q is a high-performance 4MP block camera module built for advanced video monitoring and surveillance. Powered by a 1/2.8" 5MP Sony CMOS sensor, it delivers crisp, high-resolution footage in 1440P, 1080P, and 720P formats. Its 10x optical zoom lens (4.7–47mm) and 32x digital zoom provide versatile coverage across challenging lighting scenarios, while advanced features—Wide Dynamic Range (WDR), Day/Night (ICR), Digital Noise Reduction—ensure clear images in every environment.
Designed for reliable operation in industrial, security, and remote monitoring systems, the MC-105Q offers intelligent motion detection, privacy masking, and image stabilization. Supporting LVDS and CVBS outputs, as well as VISCA and Pelco-D/P protocols, this module integrates seamlessly into modern surveillance networks. Capture stable, detailed video day or night, even in low-light, fog, or high-contrast scenes.
Features:
- 1/2.8" 5MP Sony CMOS sensor
- 1440P/1080P/720P video at 30/25fps
- 10x optical & 32x digital zoom
- Day/Night ICR function
- Wide Dynamic Range (120dB)
- 2D/3D Digital Noise Reduction
- Motion detection & privacy masking
- Digital image stabilization
- High light compensation & defog
- LVDS & CVBS outputs
- VISCA, Pelco-D/P protocol compatible
- Smart IR (up to 50m)
- Audio in/out, alarm in/out
- Rugged build: -30°C ~ 60°C operation
Applications:
- Security Surveillance
- Traffic Monitoring
- Industrial Inspection
- Remote Video
- Automated Systems
- Outdoor Surveillance
- Lighting Environments
-
Low-Light Capture
| Image Sensor | 1/2.8" Sony CMOS Sensor |
| Total Pixels | 2,704(H) x 2,104(V) = 5.69M Pixels |
| Effective Pixels | 2,616(H) x 1,960(V) = 5.13M Pixels |
| Scanning System | Progressive Scan |
| Sync. System | Internal |
| Resolution | 1440P 30/25fps, 1080p 30/25fps, 720p 30/25fps |
| Min. Illumination | Color (1/30s, 72.0dB): 0.02 lux |
| Video Output | Digital : LVDS, Analog SD : CVBS |
| S/N Ratio | more than 50dB (AGC off) |
| Lens Type | 10x Day & Night Zoom Lens |
| Zoom Ratio | Optical 10x, Digital 32x Zoom |
| Focal Length | f = 4.7mm ~ 47mm |
| Aperture Ratio | F1.7(wide) ~ F3.1(tele) |
| Angle Of View (D, H, V) | Wide: D 69.9°, H 58.3°, V 44.7°; Tele: D 8.7°, H 7.1°, V 5.4° |
| AF Mode | Auto / One Push / Manual / Auto-Ext |
| Min. Distance | 1.0 / 2.0 / 3.0 / 5.0 / 10.0 m |
| Digital Zoom | x2 ~ x32 |
| Exposure | Auto / Iris.P / Shut.P / Manual |
| Gain Control (AGC) | 0 ~ 14 steps |
| Shutter Speed | 1/1 ~ 1/100,000 |
| White Balance | Auto / Manual / Push / Outdoor |
| Day & Night | Auto / Color / B/W |
| Noise Reduction | 2D DNR |
| WDR | 120dB |
| Smart IR | Yes |
| IR Range | Up to 50m |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Privacy Masking | 4 areas |
| Motion Detection | Yes |
| Alarm Input | 1 Channel |
| Alarm Output | 1 Channel |
| Audio In | 1 Channel, RCA |
| Audio Out | 1 Channel, RCA |
| Network | 1 x RJ45, 10/100Mbps |
| Power Supply | DC 12V ± 10% |
| Power Consumption | Max 4.5W |
| Working Environment | -30°C ~ 60°C, Humidity 95% or less |
| Dimensions | Φ140mm x 118.2mm |
| Weight | Approx. 800g |
