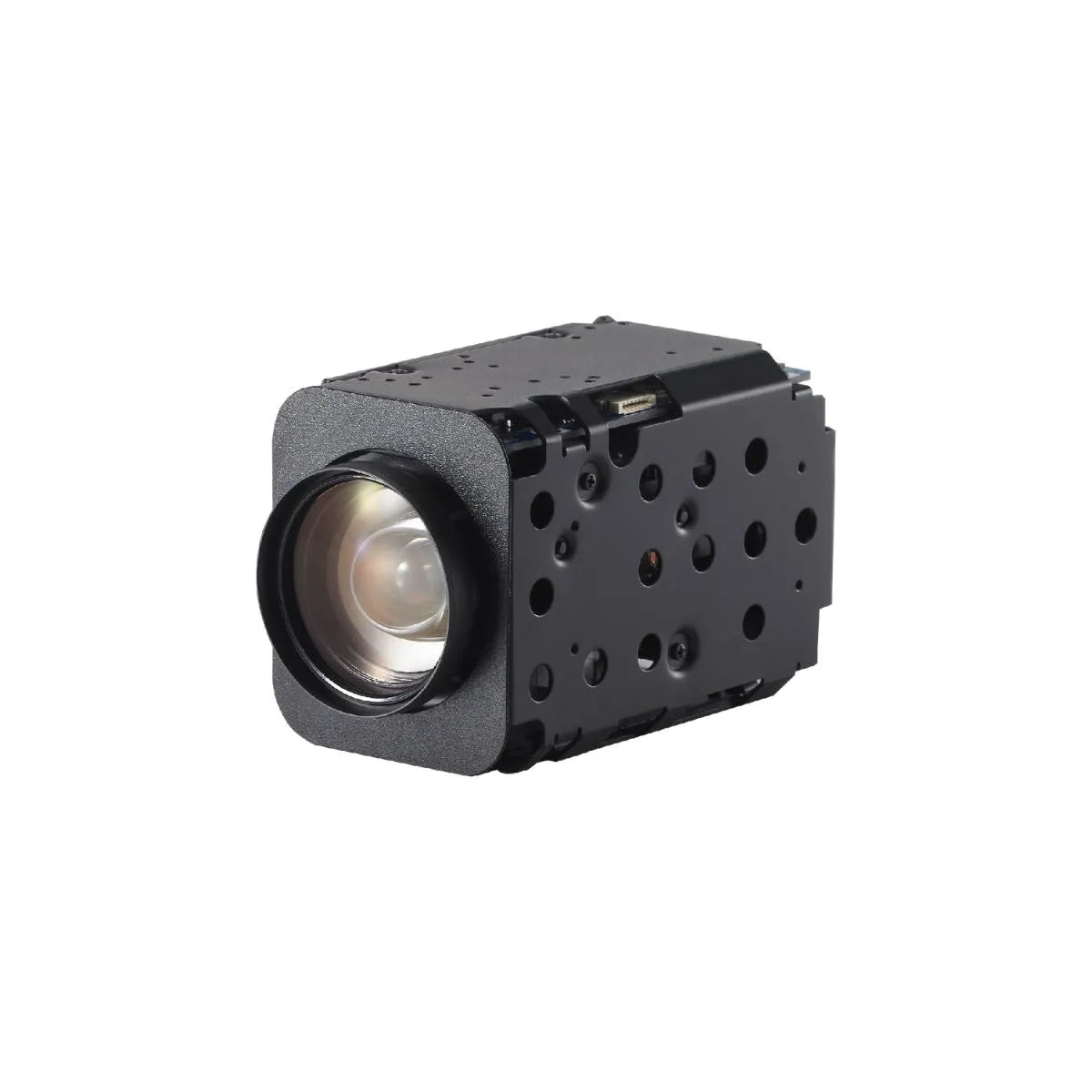

Wonwoo MC-209 2MP 20x Zoom Camera Module | LVDS / EX-SDI / CVBS Output

The Wonwoo MC-209 is a high-performance 2MP 20x optical zoom camera module engineered for OEM surveillance systems, PTZ integrations, and embedded vision applications. Designed around a 1/2.8" Sony CMOS sensor, the MC-209 delivers crisp Full HD 1080p video at up to 60fps, ensuring clear, real-time imaging in dynamic environments.

Optimized for integrators searching specifically for the MC-209 camera module, this unit offers flexible video outputs including LVDS, EX-SDI, and CVBS, making it easy to integrate into both modern HD and legacy analog systems.

The 20x optical zoom (5.2mm–104mm) combined with 32x digital zoom provides extended reach and detail capture, while advanced image processing features such as WDR, 2D/3D DNR, digital stabilization, and defog ensure reliable performance in challenging lighting and environmental conditions.

With support for VISCA and Pelco-D/P protocols, the MC209 is ideal for PTZ control systems, remote monitoring, and industrial imaging platforms requiring precise camera control and consistent image quality.

Key Features:

• 2MP Sony CMOS Sensor (1/2.8")
• Full HD 1080p @ 60fps / 30fps
• 20x Optical Zoom (5.2mm–104mm)
• 32x Digital Zoom
• Multi-Output: LVDS, EX-SDI, CVBS
• Day/Night (ICR)
• Wide Dynamic Range (WDR)
• 2D + 3D Digital Noise Reduction
• Digital Image Stabilization
• Defog + HLC + Privacy Masking
• Motion Detection (3 Zones)
• VISCA / Pelco-D / Pelco-P Control

Applications:

• PTZ Systems
• Surveillance
• OEM Integration
• Robotics Vision
• Traffic Monitoring
• Border Security
• Industrial Imaging
• Mobile Units
