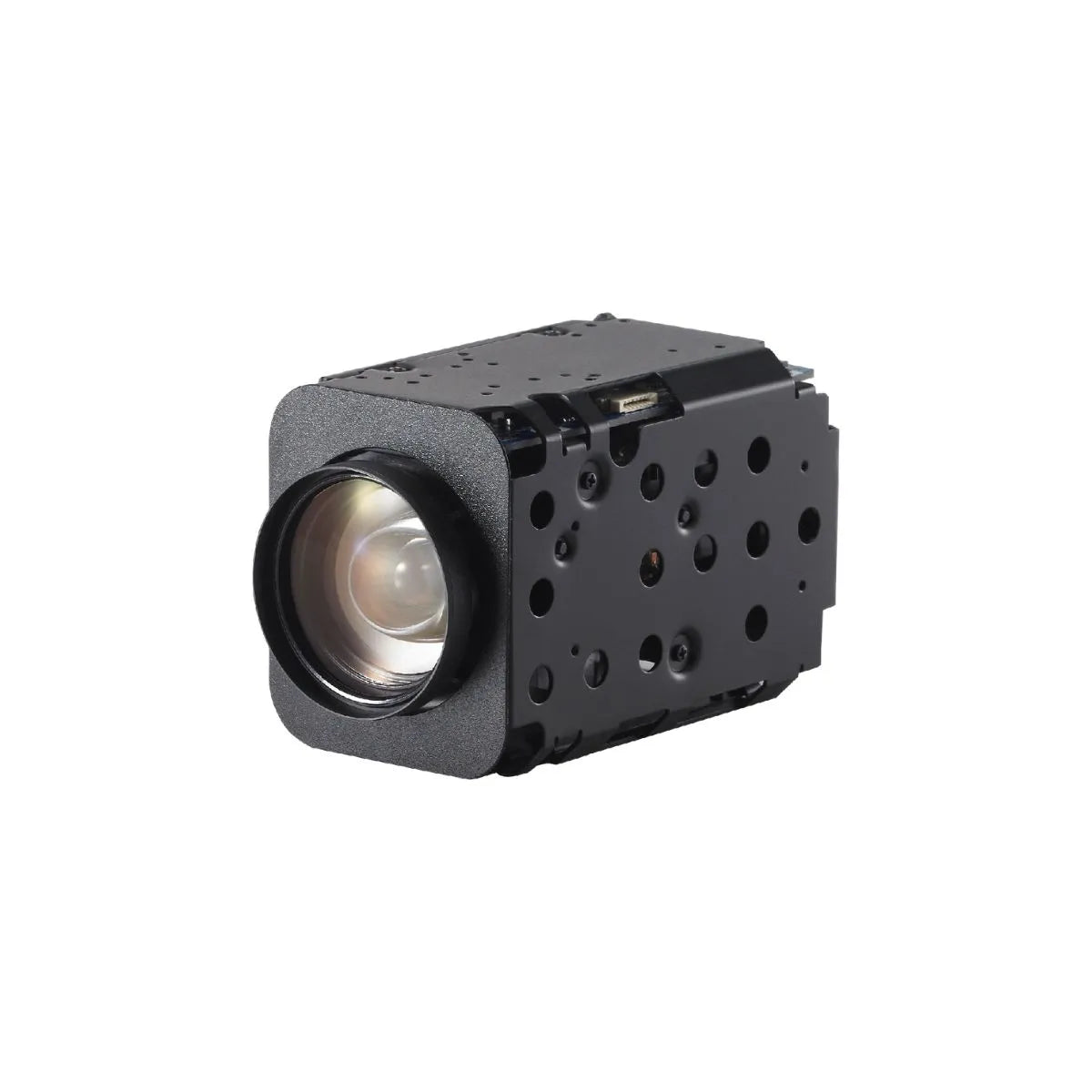

Wonwoo MC-209B 2MP 20x Zoom Camera Module | EX-SDI Block Camera

The Wonwoo MC-209B is a compact, high-performance 2MP 20x optical zoom camera module engineered for professional surveillance, defense, and embedded vision systems. Built around a 1/2.8" Sony CMOS sensor, the MC-209B delivers full HD 1080p video up to 60fps, ensuring clear, real-time image capture in demanding environments.

Designed for integrators searching specifically for the MC-209B camera module, this unit combines long-range optical zoom (5.2mm–104mm) with advanced image processing features such as Wide Dynamic Range (WDR), 2D/3D Digital Noise Reduction, and Digital Image Stabilization, making it ideal for both static and mobile applications.

With EX-SDI and CVBS outputs, along with VISCA and Pelco-D/P protocol support, the MC209B is easily integrated into existing surveillance and control systems. Its day/night ICR functionality, defog capability, and intelligent motion detection ensure reliable performance in low-light, high-contrast, and harsh environmental conditions.

Key Features:

• Sensor: 1/2.8" Sony CMOS (2MP resolution)
• Resolution:
• 1080p @ 60/30fps
• 1080i @ 60fps
• 720p @ 60/30fps
• Zoom Capability:
• 20x Optical Zoom (5.2mm – 104mm)
• 32x Digital Zoom
• Video Output: EX-SDI, CVBS
• Day/Night: ICR (Infrared Cut Filter)
• Image Enhancement:
• Wide Dynamic Range (WDR)
• 2D + 3D Digital Noise Reduction
• Digital Image Stabilization
• Defog Function
• Advanced Functions:
• Privacy Masking (up to 24 zones)
• Motion Detection (up to 3 zones)
• High Light Compensation (HLC)
• Control Protocols: VISCA, Pelco-D, Pelco-P
• Low-Light Performance: Down to 0.01 lux (color), 0.001 lux (B/W)
• Power: 9V–15V DC, low power consumption

Applications:

• Long-Range Surveillance Systems (critical infrastructure, perimeter security)
• PTZ Camera Integration & Upgrades
• UAV / Drone Imaging Systems
• Mobile Surveillance Vehicles
• Industrial Inspection & Monitoring
• Traffic & Transportation Monitoring
• Robotics & Embedded Vision Platforms
