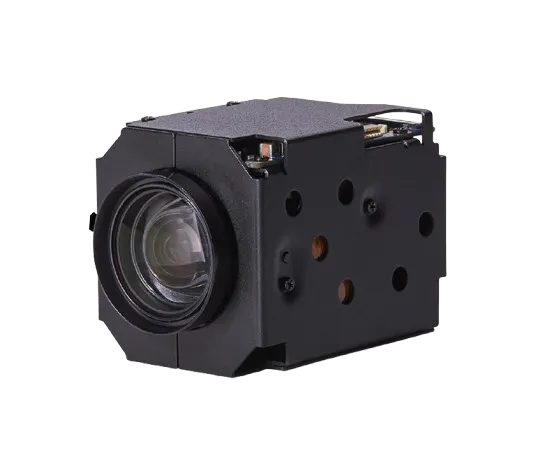

WonWoo MC-G105 3MP Global Shutter 10x Zoom Block Camera Module with Sony CMOS Sensor

WonWoo MC-G105 3MP Global Shutter 10x Zoom Block Camera Module with Sony CMOS Sensor

MC-G105

$0.00 USD
$0.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

The Wonwoo MC-G105 is a precision-engineered 3MP global shutter camera module featuring a 1/3.1" Sony CMOS sensor. Designed for professional surveillance, industrial inspection, and robotics vision systems, it delivers crisp 1080p video at 60/30fps with advanced noise reduction and digital image stabilization. Its 10x optical zoom combined with 32x digital zoom offers versatile monitoring capabilities in both day and night conditions with integrated ICR technology.

Built for reliability, the MC-G105 supports intelligent motion detection, privacy masking, defog functionality, and high light compensation, making it ideal for complex environments. Compatibility with VISCA and Pelco-D/P protocols enhances integration flexibility. This compact, high-performance module is perfect for demanding applications requiring detailed image capture and robust system control.

Features:

  • 3MP Sony CMOS Sensor
  • 1080p 60/30fps, 720p 60/30fps Video Output
  • 10x Optical & 32x Digital Zoom
  • Day & Night (ICR) Capability
  • Digital Noise Reduction (2D+3D)
  • Privacy Mask Function
  • Digital Image Stabilization
  • High Light Compensation
  • Intelligent Motion Detection
  • Defog Function
  • VISCA, Pelco-D/P Protocol Support
  • LVDS & CVBS Video Output

Applications:

  • Surveillance Monitoring
  • Industrial Inspection
  • Robotics Vision
  • Security Systems
  • Automation Control
  • Traffic Management
Image Sensor 1/3.1" Sony CMOS Sensor
Total Pixels 2,064 (H) x 1,592 (V) = 3.28M Pixels
Active Pixels 2,064 (H) x 1552 (V) = 3.20M Pixels
Scanning System Progressive Scan
Sync. System Internal
Resolution Digital: 1080p/60(50)fps, 1080p/30(25)fps, 720p/60(50)fps, 720p/30(25)fps
Analog: CVBS
Min. Illumination (50%) Color (1/30s, 79.5dB): 0.1 lux, BW (1/30s, 79.5dB): 0.01 lux
Color DSS (1/1s, 79.5dB): 0.01 lux, BW DSS (1/1s, 79.5dB): 0.001 lux
Video Output Digital: LVDS, Analog: CVBS
S/N Ratio More than 50dB (AGC off)
Lens Type 10x Day & Night Zoom Lens
Zoom Ratio Optical 10x, Digital 32x Zoom
Focal Length f = 4.7mm ~ 47mm
Aperture Ratio F1.7 (wide) ~ F3.1 (tele)
Angle Of View (D, H, V) Wide: 54.6° - 48.4° - 28.4°

Tele: 6.9° - 6° - 3.4°
Trigger Polarity Active Low / Active High
Trigger Delay 0 ~ 255.9ms
Strobe Polarity Active Low / Active High
Strobe Delay Ext-Trigger: 0 ~ 255.9ms / Free run: 0 ~ (1V period – Width)ms
Strobe Width Ext-Trigger: 0 ~ 255.9ms / Free run: 0 ~ (1V period – Delay)ms
Shutter Speed (Ext-trigger) 1/30(25) ~ 1/40,000 sec
AGC (Ext-trigger) 0 ~ 10 steps
Iris (Ext-trigger) Close ~ F1.7
Day & Night (Ext-trigger) Day / Night
AF Mode Auto / One Push / Manual
Min. Distance 1.0 / 2.0 / 3.0 / 5.0 / 10.0 m
Lens Refresh One Push / 1 ~ 10Day
Digital Zoom Off / MAX 2x ~ 32x
Exposure Auto / Iris.P / Shut.P / Manual
Digital Slow Shutter(DSS) Off / 2x / 4x / 8x / 16x / 32x (/64x : 60 or 50fps mode only)
Brightness 0 ~ 14 steps
Back Light Off / BLC / HLC
White Balance Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext
DNR 2D/3D, 2D+3D
Mirror Off / H / V / H&V
Sharpness 0 ~ 15 steps
DWDR Off / Manual / Auto
Defog Off / Manual / Auto
Privacy Mask Off/On (8 points)
Motion Detection Off/On (4 points)
Defect Detection Off/On
System NTSC/PAL
Communication Baud Rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200

Protocol : Pelco-P / Pelco-D / VISCA
Power Source 9V to 15V DC
Power Consumption MAX 430mA (@ 12VDC)

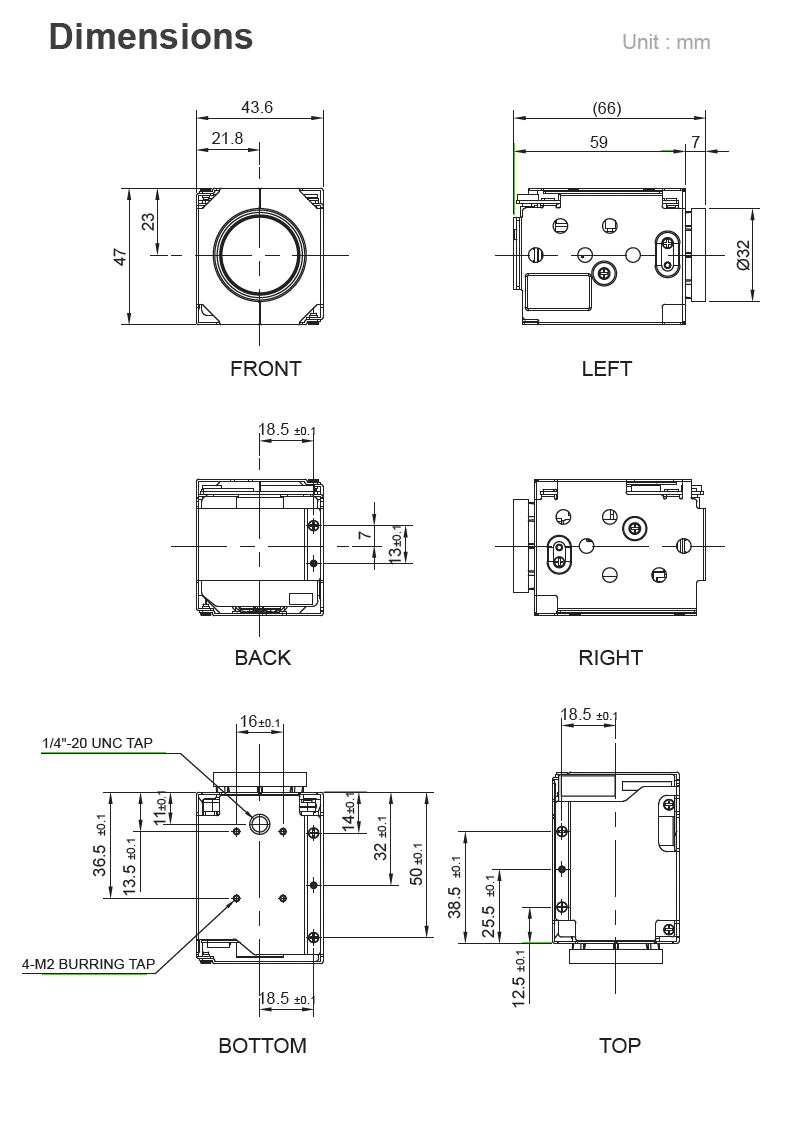

Dimensions 43.6(W) x 47(H) x 66(D)
Weight 165g
