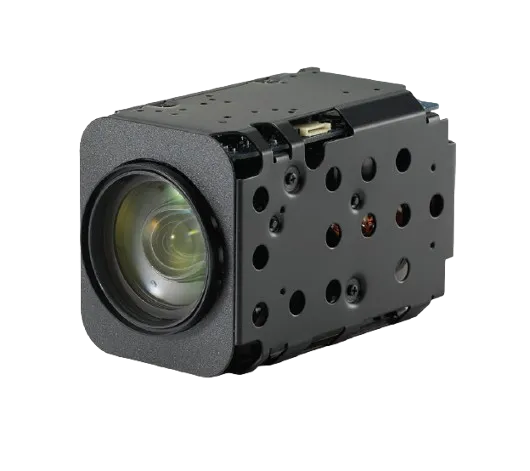

Wonwoo MC-G305 3MP Global Shutter 30x Zoom Camera Module | LVDS / BT.1120 / CVBS

The Wonwoo MC-G305 is a high-performance 3MP global shutter zoom camera module engineered for precision imaging in motion-critical environments. Built around a Sony CMOS sensor, this module delivers sharp, distortion-free imaging while eliminating rolling shutter artifacts—making it ideal for robotics, UAVs, and high-speed surveillance systems.

With a powerful 30x optical zoom (4.6mm–136mm) and up to 32x digital zoom, the MC-G305 enables long-range target acquisition without sacrificing image clarity. Its global shutter architecture ensures accurate frame capture for fast-moving objects, a critical requirement in automation, tracking, and aerial imaging.

Supporting LVDS, BT.1120, and CVBS outputs, along with VISCA and Pelco-D/P control protocols, the MC-G305 integrates seamlessly into embedded systems and legacy surveillance infrastructures.

Key Features:

• 3MP Sony CMOS Global Shutter Sensor – Eliminates motion distortion in high-speed environments
• 30x Optical Zoom (4.6mm – 136mm) – Long-range imaging with fine detail
• Up to 32x Digital Zoom – Extended reach for surveillance and tracking
• 1080p @ 60fps / 30fps – Smooth, high-definition video output
• Multi-Interface Output – BT.1120, LVDS (Single/Dual), and CVBS
• Day & Night (ICR) – Reliable performance in varying lighting conditions
• Digital Image Stabilization (DIS) – Reduces vibration in UAV and mobile systems
• 2D + 3D Digital Noise Reduction – Cleaner images in low-light environments
• Defog Function – Enhanced visibility in haze, fog, or poor weather
• Privacy Mask & Motion Detection – Built-in intelligent analytics
• VISCA & Pelco-D/P Control – Flexible integration with PTZ and control systems

Applications:

• UAV / Drone Vision Systems
• Robotics & Autonomous Navigation
• Long-Range Surveillance & Security
• Industrial Inspection & Automation
• Traffic Monitoring & ITS Systems
• Border & Perimeter Security
