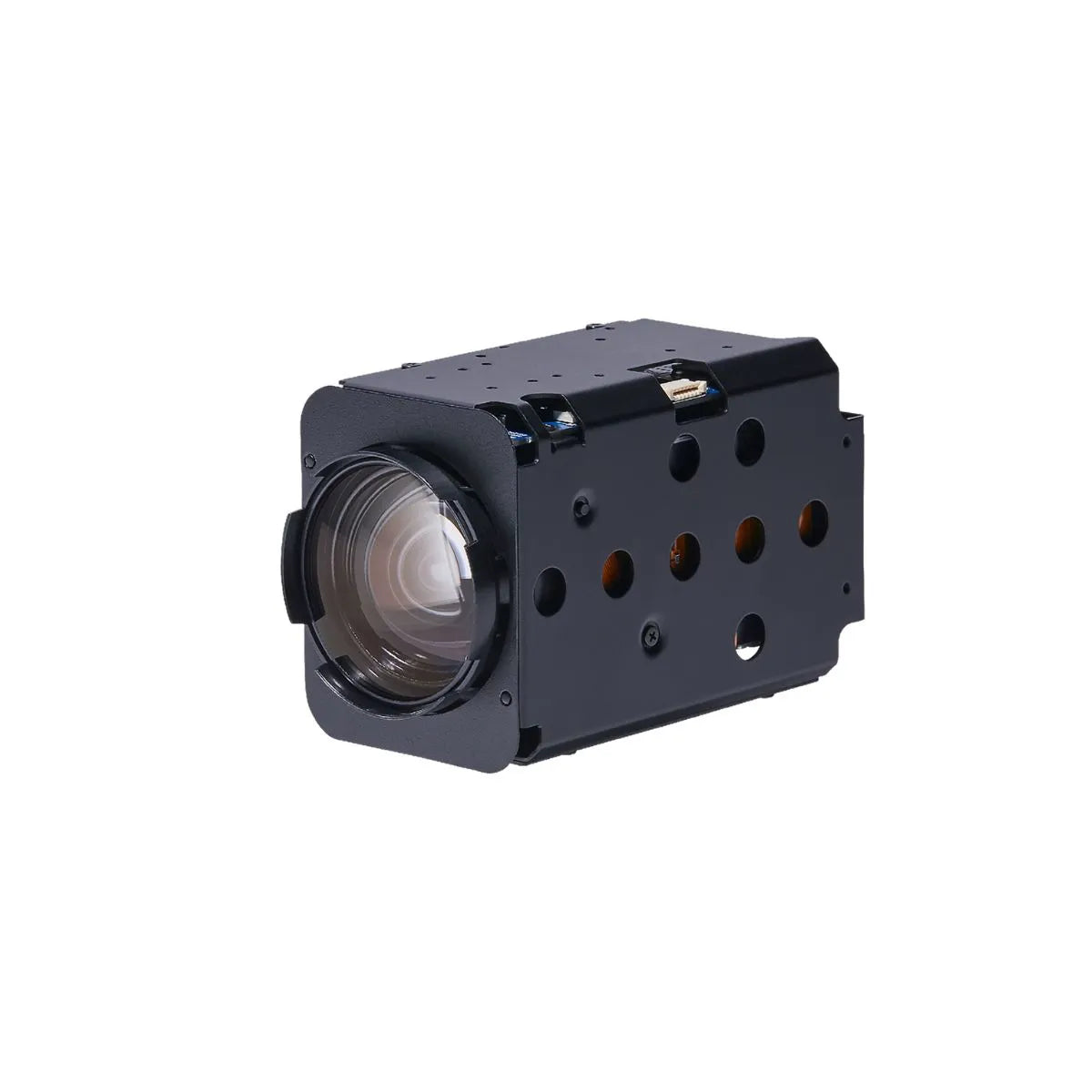

Wonwoo MC-S185U 9MP 4K UHD 18x Zoom Block Camera Module with 9MP Sony CMOS Sensor
Wonwoo MC-S185U 9MP 4K UHD 18x Zoom Block Camera Module with 9MP Sony CMOS Sensor
SKU:MC-S185U
Couldn't load pickup availability
The Wonwoo MC-S185U block camera module is engineered for unmatched imaging quality and flexible integration in industrial and commercial vision systems. Featuring a premium 1/1.8" Sony CMOS sensor, this compact camera delivers crystal-clear 4K video at up to 30fps, with wide, realistic color depth and exceptional low-light performance.
Supporting 18x optical zoom from 6.8mm to 120mm and 32x digital zoom, the MC-S185U is packed with advanced features like Wide Dynamic Range, Digital Noise Reduction (2D+3D), and a robust day & night ICR filter. Multiple video outputs (HDMI, CVBS) and compatibility with VISCA, Pelco-D, and Pelco-P protocols make it an ideal choice for demanding machine vision, surveillance, and broadcast applications.
Features:
- 1/1.8" 9MP Sony CMOS sensor
- 4K (2160p) @ 30fps, multiple resolution options
- 18x optical, 32x digital zoom capabilities
- F1.61~F4.13 aperture, wide angle and telephoto support
- Day & Night function (ICR switch)
- Wide Dynamic Range
- Digital Noise Reduction (2D/3D)
- Digital Image Stabilization
- Privacy Mask (8 points), High Light Compensation
- Intelligent Motion & Defect Detection
- Defog function for challenging environments
- Supports VISCA, Pelco-D/P control protocols
- HDMI/Analog CVBS video output
- Compact, lightweight, low power design
Applications:
- Machine Vision
- Traffic Surveillance
- Broadcast Video
- Security Systems
- Retail Analytics
- Robotics Imaging
- Medical Monitoring
- Factory Automation
| Image Sensor | 1/1.8" Sony CMOS Sensor |
| Total Pixels | 3,952(H) x 2,320(V) = 9.17M Pixels |
| Active Pixels | 3,864(H) x 2,176(V) = 8.41M Pixels |
| Scanning System | Progressive Scan |
| Sync. System | Internal |
| Resolution | 2160p/30(25)fps, 1440p/30(25)fps, 1080p/30(25)fps, 720p/30(25)fps |
| Min. Illumination | Color(1/30s, 72dB) : 0.012lux , BW(1/30s, 72dB) : 0.0019lux Color DSS(1/1s, 72dB) : 0.0012lux , BW DSS(1/1s, 72dB) : 0.00019lux |
| Video Output | Digital : HDMI Analog SD : CVBS |
| S/N Ratio | more than 50dB (AGC off) |
| Lens Type | 18x Day & Night Zoom Lens |
| Zoom Ratio | Optical 18x, Digital 32x |
| Focal Length | f = 6.8mm ~ 120.0mm |
| Aperture Ratio | F1.61 (wide) ~ F4.13 (tele) |
| Angle Of View(D, H, V) | Wide 65.3° 58.5° 35.0° Tele 4.2° 3.7° 2.1° |
| AF Mode | Auto / One Push / Manual |
| Min. Distance | 0.5 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Lens Refresh | One Push / 1 ~ 10Days |
| Digital Zoom | 32X |
| D/N | Yes |
| IR Cut Filter | Yes |
| Power Input | DC 12V / 24V (±10%) |
| Power Consumption | Max. 8W |
| Operating Temp. | -10°C ~ +50°C |
| Storage Temp. | -20°C ~ +60°C |
| Dimensions | Φ121mm x 158mm (D x H) |
| Weight | Approx. 1,230g |
