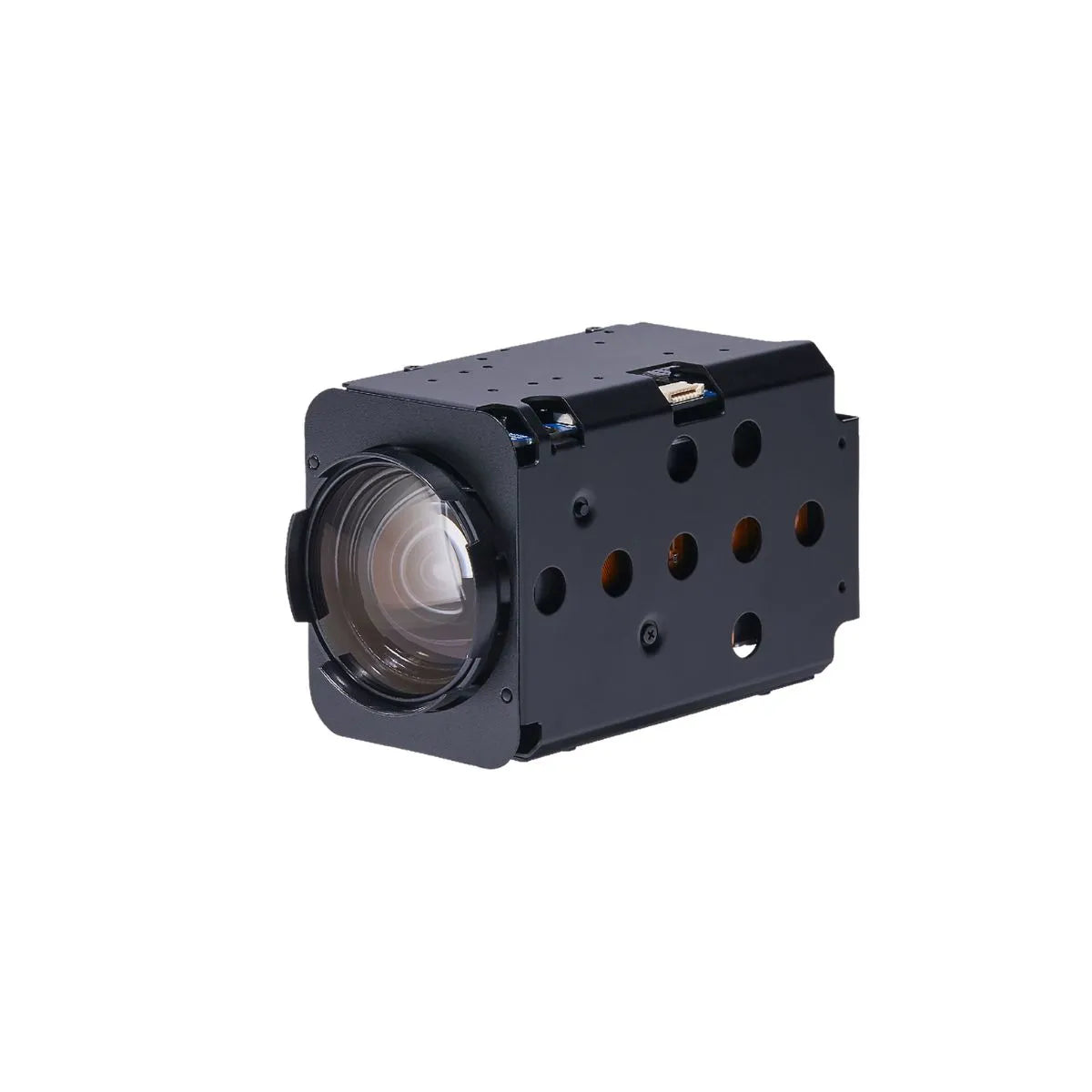

Wonwoo MC-S189 2MP 18x Zoom Block Camera Module | 1080p60 LVDS / EX-SDI

Wonwoo MC-S189 2MP 18x Zoom Block Camera Module | 1080p60 LVDS / EX-SDI

SKU:MC-S189

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

The MC-S189 from Wonwoo is engineered for integrators who need a high-zoom, low-latency camera module in a compact footprint. Built around a 1/2" Sony CMOS sensor, this module delivers Full HD 1080p at up to 60fps, making it ideal for real-time tracking, inspection, and aerial imaging systems.

With a powerful 18x optical zoom (6.8mm–122.4mm) and up to 32x digital zoom, the MC-S189 enables precise long-distance identification without sacrificing image clarity. Its wide dynamic range (WDR), defog, and 2D/3D noise reduction ensure usable images even in harsh lighting, fog, or nighttime conditions.

Designed for seamless integration, the camera supports LVDS and EX-SDI outputs, along with VISCA and Pelco-D/P control protocols, making it easy to deploy across embedded systems, PTZ platforms, UAV payloads, and industrial vision setups.

This module is a strong fit for applications requiring compact size, high zoom capability, and stable imaging performance without the complexity of larger camera systems.

Key Features:

  • 2MP Sony CMOS sensor for reliable Full HD imaging
  • 18x optical zoom (6.8mm–122.4mm) for long-range capture
  • Up to 32x digital zoom for extended reach
  • 1080p60 / 1080p30 / 720p60 output options
  • LVDS & EX-SDI video output for flexible integration
  • Wide Dynamic Range (WDR) for high-contrast scenes
  • Day/Night (ICR) for true 24/7 operation
  • 2D + 3D Digital Noise Reduction for cleaner images
  • Digital Image Stabilization (DIS) for motion environments
  • Defog & HLC (Highlight Compensation) for visibility improvement
  • Motion detection & privacy masking built-in
  • VISCA & Pelco-D/P control protocols
  • Compact, lightweight design for embedded systems

Applications:

  • UAV / drone surveillance
  • Robotics & autonomous systems
  • Border & perimeter security
  • Long-range monitoring
  • Industrial inspection
  • Mobile surveillance platforms
  • PTZ camera integration
  • Traffic & ITS systems
