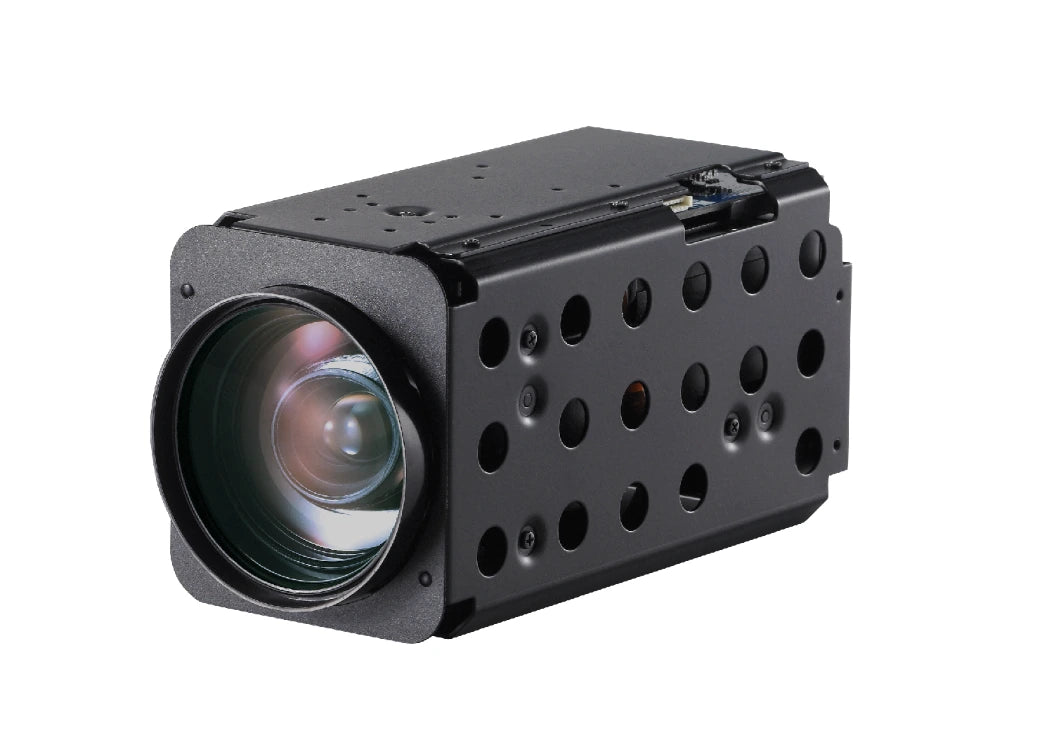

Wonwoo MC-S369Q 4MP 36x Zoom Block Camera Module | Sony 1/1.8" CMOS | LVDS / EX-SDI Output

The Wonwoo MC-S369Q is a high-performance 4MP zoom camera module engineered for long-range surveillance, industrial imaging, and integrated security systems. Built around a 1/1.8" Sony CMOS sensor, this advanced block camera delivers sharp, detailed video at up to 1440p resolution, ensuring superior clarity in demanding environments.

Designed for system integrators and OEM applications, the MC-S369Q features a powerful 36x optical zoom (6mm–216mm) combined with 32x digital zoom, enabling precise target identification over extended distances. Its Day & Night (ICR) capability, Wide Dynamic Range (WDR), and advanced image processing (2D/3D DNR, DIS, Defog) ensure consistent performance across varying lighting and weather conditions.

With flexible output options including LVDS, EX-SDI, and CVBS, along with support for VISCA and Pelco-D/P protocols, the MC-S369Q integrates seamlessly into modern surveillance systems, PTZ platforms, and embedded vision solutions.

Key Features:

• Model: MC-S369Q (Wonwoo zoom camera module)
• Sensor: 1/1.8" Sony CMOS (6MP class, optimized 4MP output)
• Resolution: 1440p @ 30fps, 1080p @ 30fps, 720p @ 30fps
• Zoom: 36x Optical (6–216mm) + 32x Digital
• Aperture: F1.5 (Wide) ~ F4.8 (Tele)
• Video Outputs: LVDS, EX-SDI, CVBS (test)
• Protocols: VISCA, Pelco-D, Pelco-P
• Image Enhancements:
• Wide Dynamic Range (WDR)
• 2D + 3D Digital Noise Reduction
• Digital Image Stabilization (DIS)
• Defog Function
• High Light Compensation (HLC)
• Smart Features:
• Intelligent Motion Detection
• Privacy Masking (up to 24 zones)
• Day/Night: ICR (Auto / Manual / External)
• Low Light Performance: Down to 0.005 lux (B/W DSS)
• Power: 9–15V DC
• Compact Design: Ideal for OEM integration

Applications:

• Long-range video surveillance systems
• PTZ camera integrations
• Border and perimeter security
• Traffic monitoring and ITS systems
• Industrial inspection and monitoring
• UAV / robotics vision systems
• Law enforcement and mobile surveillance
• Critical infrastructure protection
