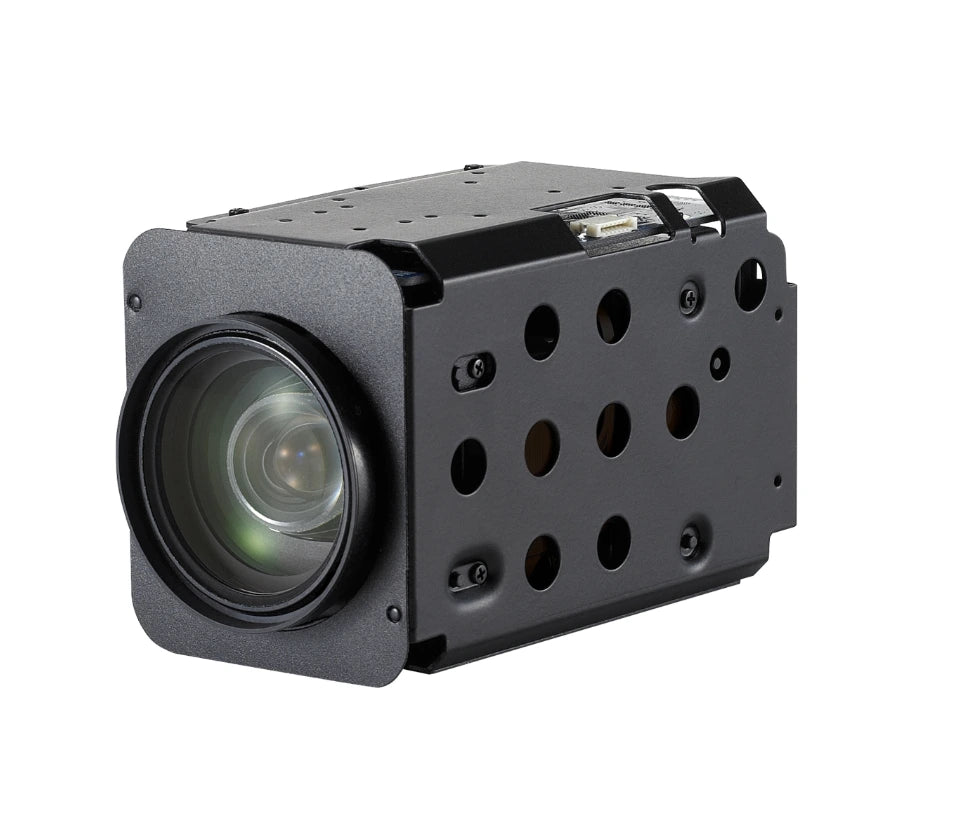

Wonwoo MM-405 2MP 40x Zoom Block Camera Module | 1080p LVDS/CVBS Output

Wonwoo MM-405 2MP 40x Zoom Block Camera Module | 1080p LVDS/CVBS Output

SKU:MM-405

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

The Wonwoo MM-405 is a high-performance 2MP 40x optical zoom block camera module engineered for demanding surveillance, industrial imaging, and OEM integration applications. Built around a 1/2.8" Sony CMOS sensor, the MM-405 delivers crisp Full HD 1080p video at up to 60fps, ensuring smooth, high-detail imaging even in dynamic environments.

Designed for integrators searching specifically for the MM-405 camera module, this unit combines powerful zoom capability (4.25mm–170mm optical range) with advanced image processing features including WDR, 2D/3D DNR, digital stabilization, and defog, making it ideal for long-range and challenging lighting conditions.

With LVDS and CVBS video outputs, along with VISCA and Pelco-D/P protocol support, the MM-405 integrates seamlessly into PTZ systems, embedded platforms, and custom surveillance solutions.

If you’re sourcing the Wonwoo MM-405, this module provides a reliable, OEM-ready solution for high-zoom imaging applications.

Key Features:

  • Model: MM-405 (Wonwoo) – SKU optimized for search
  • 1/2.8" Sony CMOS sensor (2MP resolution)
  • Full HD 1080p @ 60fps / 30fps, 720p @ 60fps
  • 40x optical zoom (4.25mm – 170mm)
  • 32x digital zoom for extended reach
  • Dual video output: LVDS (digital) + CVBS (analog)
  • Wide Dynamic Range (WDR) for high-contrast scenes
  • Advanced noise reduction (2D + 3D DNR)
  • Digital Image Stabilization (DIS)
  • Day/Night with IR Cut Filter (ICR)
  • Defog and Highlight Compensation (HLC)
  • Privacy masking and motion detection
  • VISCA, Pelco-D, Pelco-P control protocols
  • Low-light performance down to 0.002 lux (B/W)

Applications:

  • Long-range surveillance systems
  • PTZ camera integration
  • Border & perimeter security
  • Traffic monitoring & ITS systems
  • Industrial inspection with zoom requirements
  • UAV / drone imaging payloads
  • Marine and mobile surveillance systems
  • OEM security camera development
