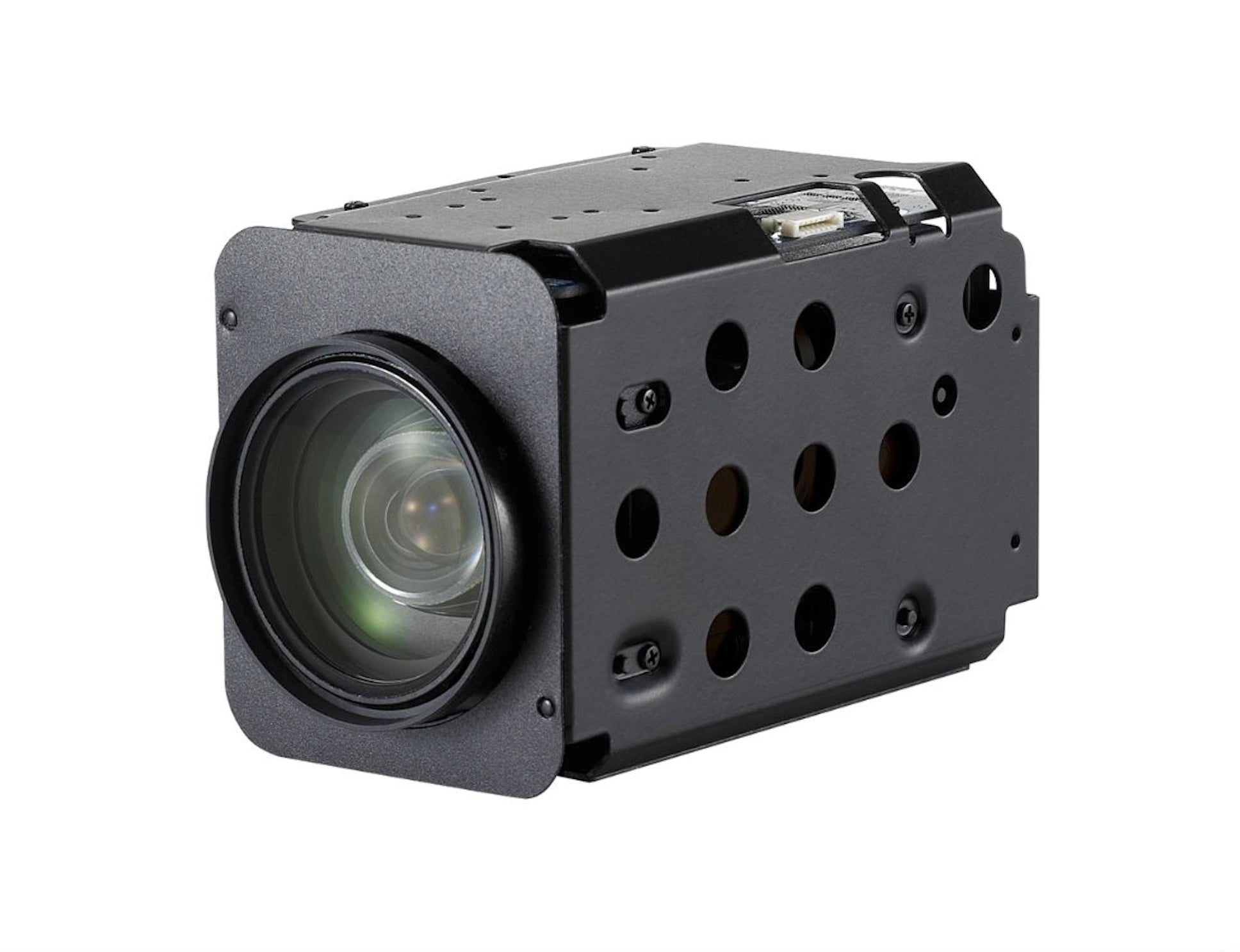

• Black industrial block camera on a white background

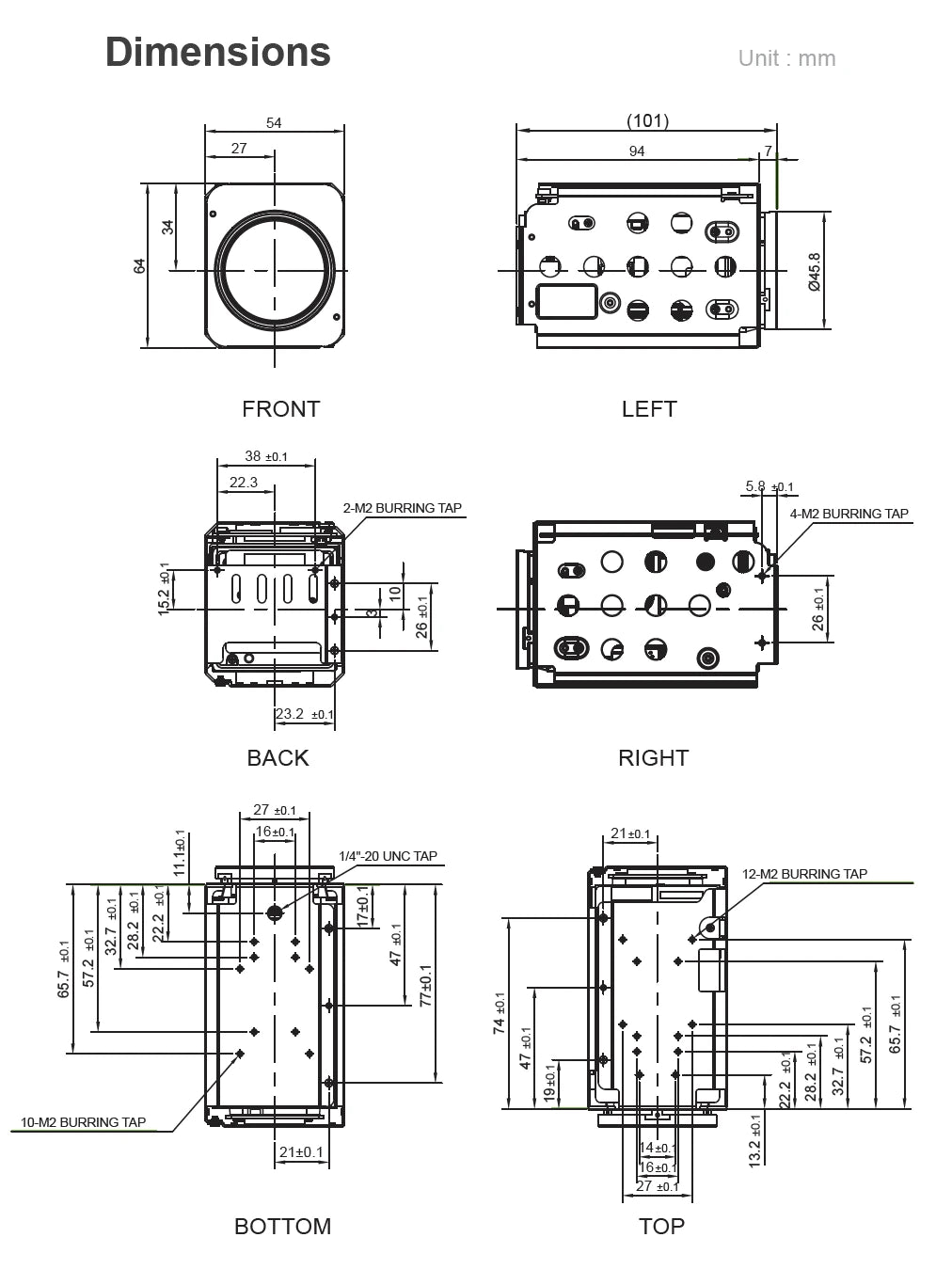

  • Technical drawing with dimensions of a block camera from multiple angles
1 2

USA Security Systems

MM405Q

Wonwoo MM-405Q 40x Optical Zoom Block Camera with 5.1MP Sony CMOS Sensor

Wonwoo MM-405Q 40x Optical Zoom Block Camera with 5.1MP Sony CMOS Sensor

MM-405Q

$0.00 USD
$0.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

The Wonwoo MM-405Q is a long-range optical zoom module designed for surveillance, monitoring, and embedded imaging where identifying detail at distance matters. It uses a 1/2.8" Sony CMOS sensor with 5.13MP effective pixels (2616×1960) and supports 1440p / 1080p / 720p output formats for clean integration into modern video pipelines.

For real-world scene reliability, the MM-405Q includes ICR Day/Night, WDR, 2D+3D noise reduction, digital image stabilization, HLC/BLC, defog, privacy masking, and motion detection. Control is simplified with VISCA and Pelco-D/P, while LVDS (digital) and CVBS (analog) outputs provide flexibility across embedded and legacy systems.

Features:

  • 5.13MP effective pixels (2616×1960)
  • 1/2.8" Sony CMOS sensor
  • 40x optical zoom (4.25–170mm)
  • Up to 32x digital zoom
  • 1440p / 1080p / 720p output (30/25fps)
  • LVDS digital video output
  • CVBS analog video output
  • ICR Day/Night switching
  • WDR (DWDR) support
  • 2D+3D DNR noise reduction
  • Digital stabilization (DIS)
  • BLC / HLC compensation
  • Defog processing
  • Privacy mask (8 zones)
  • Motion detection (4 zones)
  • Control: VISCA / Pelco-D / Pelco-P

Applications:

  • Perimeter security
  • Long-range
  • PTZ systems
  • Site monitoring
  • Traffic monitoring
  • Inspection imaging
  • UAV payloads
  • Tower cameras
  • Facility security
  • Embedded vision



Image Sensor 1/2.8" Sony CMOS Sensor
Total Pixels 2,704 (H) x 2,104 (V) = 5.69M Pixels
Effective Pixels 2,616 (H) x 1,960 (V) = 5.13M Pixels
Scanning System Progressive Scan
Sync. System Internal
Resolution Digital: 1440p 30/25fps, 1080p 30/25fps, 720p 30/25fps; Analog: CVBS
Min. Illumination Color(1/30s, 72.0dB): 0.02 lux, BW(1/30s, 72.0dB): 0.002 lux; Color DSS(1/1s, 72.0dB): 0.002 lux, BW DSS(1/1s, 72.0dB): 0.0002 lux
Video Output Digital: LVDS; Analog: CVBS
S/N Ratio More than 50dB (AGC off)
Lens Type 40x Day & Night Zoom Lens
Zoom Ratio Optical 40x, Digital 32x
Focal Length f = 4.25 mm ~ 170 mm
Aperture Ratio F1.6 (wide) ~ F4.95 (tele)
Angle Of View (D, H, V) Wide: 69.3°(D), 62.13°(H), 37.44°(V); Tele: 1.98°(D), 1.73°(H), 0.97°(V)
AF Mode Auto / One Push / Manual / Auto-Ext
Min. Distance 0.1m / 1.5m / 3.0m / 6.0m / 10.0m
Lens Refresh One Push / 1 ~ 10 Days
Digital Zoom 2x ~ 32x
Exposure Auto / Iris.P / Shut.P / Manual
Gain Control (AGC) 0 ~ 10 steps
Shutter Speed 1/1 ~ 1/100,000 sec
Iris Close ~ F1.6
Digital Slow Shutter (DSS) Off / x2 / x4 / x8 / x16 / x32
Flickerless Off / On
Brightness 0 ~ 14 steps
Back Light Off / BLC / HLC
Day & Night Auto / Day / Night / Ext-in
White Balance Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext
DNR 2D / 3D, 2D+3D
Mirror Off / H / V / H&V
Sharpness 0 ~ 15 steps
DWDR Off / On
Defog Off / On
Privacy Mask Off / On (8 points)
Motion Detection Off / On (4 points)
Defect Detection Off / On
Communication NTSC / PAL; Baud Rate: 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200; Protocol: Pelco-P / Pelco-D / VISCA
Power Source 9V to 15V DC
Power Consumption Max 560mA
Power Input Connector
Storage Temperature -20℃ ~ +60℃ (Humidity: 0%RH ~ 90%RH)
Operating Temperature -10℃ ~ +50℃ (Humidity: 0%RH ~ 90%RH)
Dimensions 54(W) x 64(H) x 101(D)
Weight 355g
