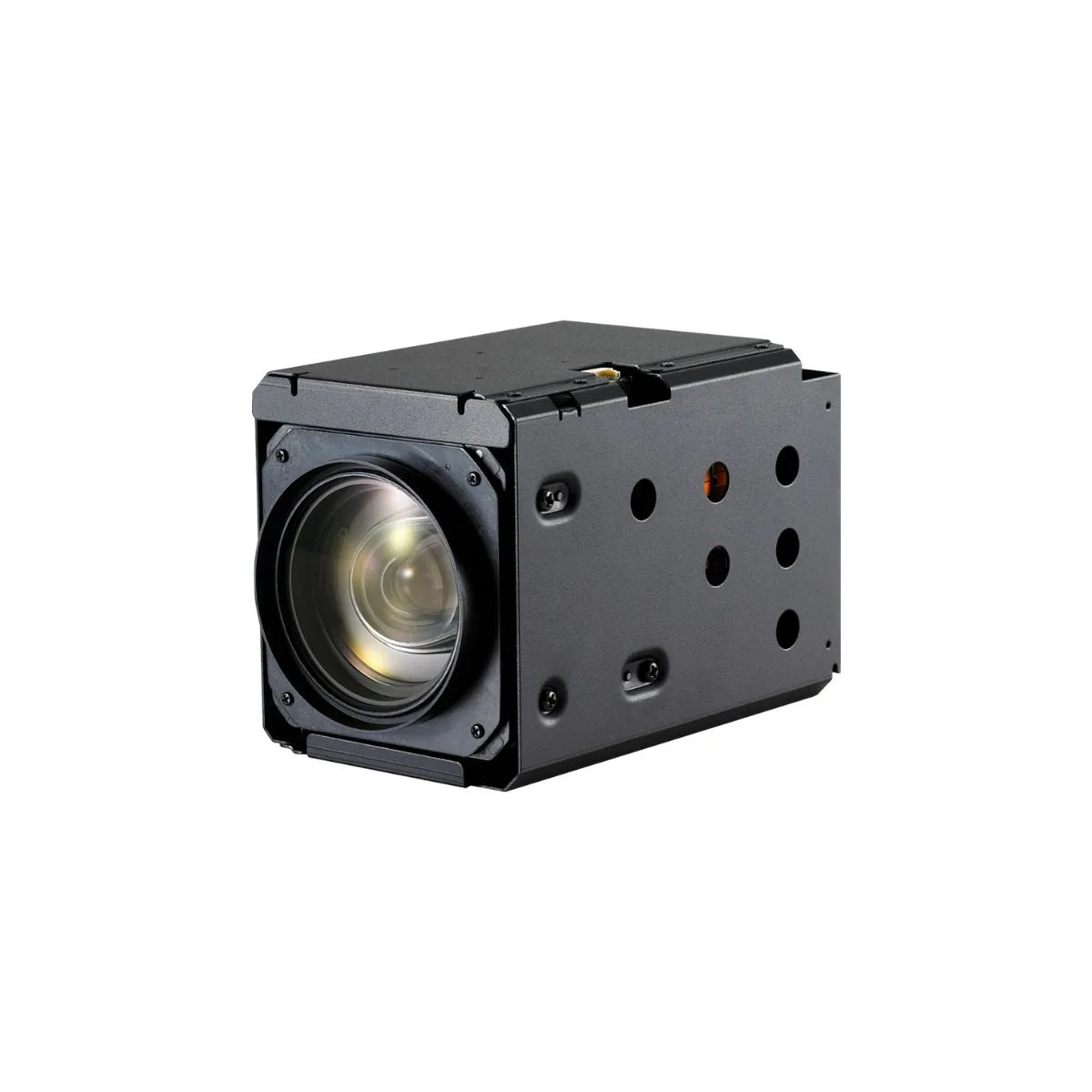

Wonwoo MM-S407 40x Optical Zoom Block Camera with 2MP Sony CMOS sensor

Wonwoo MM-S407 is a compact 2MP 40x optical zoom module built around a 1/1.8" Sony CMOS sensor (4.53MP total / 2.07MP active) for sharp Full HD output at 1080p60. Designed for integrators and OEMs, this module combines long-reach optics (6.5–260mm, F1.5–F5.3) with professional image controls for reliable detail capture across changing scenes and lighting.

For real-world deployment, MM-S407 adds Day/Night ICR, WDR, 2D+3D DNR, EIS, HLC/BLC, and defog/optical defog, plus privacy masking and motion detection for system-level functionality. Control and integration are straightforward with VISCA + Pelco-D/P support and video output via LVDS (digital) or CVBS (analog).

Features:

• 40x optical zoom: 6.5–260mm long-range coverage
• 32x digital zoom: additional reach when needed
• 1080p60 video: smooth Full HD capture (plus 720p modes)
• Day/Night ICR: dependable low-light switching
• WDR support: balanced exposure in mixed lighting
• 2D+3D DNR: cleaner video in low light
• EIS stabilization: reduced shake in telephoto use
• HLC / BLC: highlight and backlight compensation
• Defog + optical defog: clearer images in haze/smoke conditions
• Privacy masking: up to 24 points
• Motion detection: up to 4 points
• VISCA + Pelco-D/P: common PTZ/control protocol support
• Dual video outputs: LVDS (digital) + CVBS (analog)

Applications:

• Long-range
• Perimeter security
• Border surveillance
• Traffic monitoring
• Industrial inspection
• Remote monitoring
• PTZ systems
• UAV payloads
• Marine imaging
• Gate control
