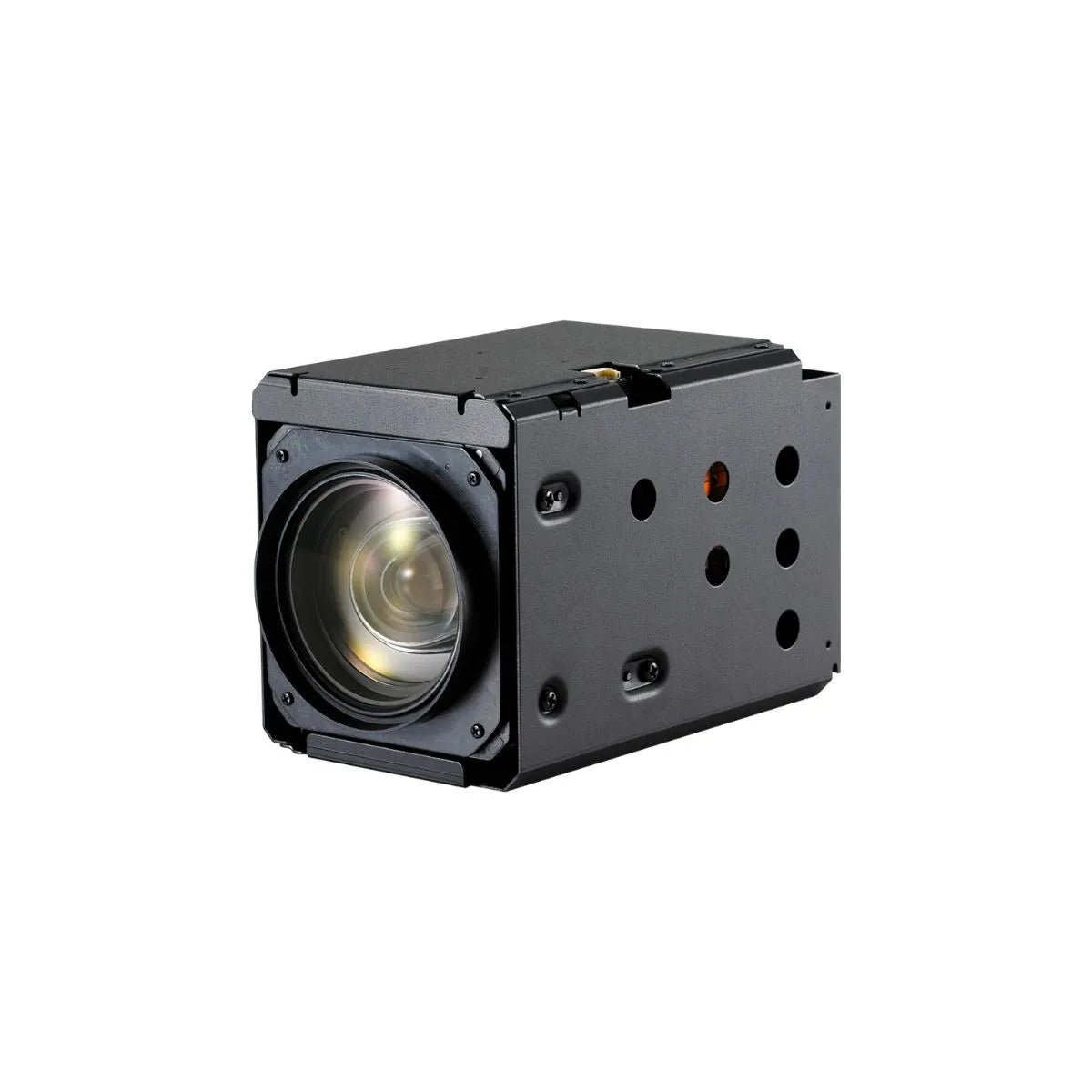

Wonwoo MM-S407Q 40x Optical Zoom Camera Module with 4MP Sony CMOS sensor

The Wonwoo MM-S407Q is a long-range, high-magnification camera module engineered for PTZ and embedded imaging systems that need clear detail at distance. It combines a 1/1.8” 4MP Sony CMOS progressive sensor with 1440p (30/25fps) output, strong low-light sensitivity, and image optimization features like WDR, HLC/BLC, 2D+3D noise reduction, and electronic image stabilization (EIS) to keep footage usable in bright glare, deep shadow, haze, and vibration.

For OEM and integrator builds, MM-S407Q supports common control standards (VISCA, Pelco-D, Pelco-P) with multiple baud rates and provides LVDS digital video plus CVBS analog output for flexible system design. Day/night ICR switching, privacy masking, motion detection, and defog/optical defog make it a practical choice for perimeter monitoring, long-range observation, traffic viewing, and industrial/site surveillance.

Key Features:

• MM-S407Q integration-ready zoom module
• 4MP Sony CMOS (1/1.8”) progressive scan
• 1440p/1080p/720p at 30/25 fps (digital)
• 40x optical zoom (6.5–260mm) + 32x digital zoom
• F1.5–F5.3 aperture range (wide to tele)
• Day/Night ICR with multiple D&N modes
• WDR, HLC, BLC for challenging lighting
• 2D+3D DNR for cleaner low-light video
• EIS for reduced shake at long focal lengths
• Defog + Optical Defog for haze/atmospheric clarity
• Privacy mask (24 points) + motion detection (4 points)
• VISCA / Pelco-D / Pelco-P control support
• Video outputs: LVDS (digital) + CVBS (analog)

Applications:

• Perimeter Security
• Long Range
• PTZ Payloads
• Facility Monitoring
• Border Observation
• Traffic Monitoring
• Critical Infrastructure
• Industrial Monitoring
• Remote Inspection
• Site Surveillance
